36-Tray Fully Automatic Intelligent Proofing Cabinet for Dough, Bread, and Yogurt Fermentation, with Temperature Control From -15 to 40 Degrees Celsius

Customization: Available
After-sales Service: One-Year Warranty
Warranty: One-Year Warranty

Product Description

Basic Info.
Model NO.
BO-36D
Usage
Biscuit, Cake, Pizza, Bread
Power Source
Electric
Timing Device
With Timing Device
Type
Proofing Machine
Voltage
220V
Trays
36 Trays
Temperature
-15~40 Celsius
Baking Tray Size
400*600mm
N.W
220kg
Product Introduction

A 36-tray refrigerated proofing cabinet is a commercial kitchen appliance commonly used in bakeries, pastry shops, or the food processing industry. The main function of this equipment is to provide a suitable temperature and humidity environment for the dough to proof (ferment) before baking. The term "36-tray" refers to the fact that the interior of the equipment has 36 shelves or trays, allowing for the simultaneous proofing of batches of dough. The refrigeration function means that the equipment can be set at a lower temperature for proofing, which helps to control the fermentation speed of the dough, especially when long proofing times are required or when working in high-temperature environments.

Main Core Components
  • Fully automatic microcomputer control panel: Digital display accurately reflects the temperature and humidity with a timer function.
  • Imported sensors from Germany: Versatile functions including refrigeration, freezing, and proofing.
  • Stainless steel construction: Durable interior and exterior equipped with imported Tecumseh compressors and pure copper tube evaporators.
  • Advanced expansion-type thermostat: Separate control for both temperature and humidity.
  • High-quality blowers: Hot air circulation design ensures consistent environment within the cabinet.
  • Drainage system: Facilitates regular cleaning and ensures food hygiene.
Machine Dimensions

Machine Size: 31*45*80inch (79*114.5*204cm)

Please use the following dimensions to assess whether your production area has enough space. We recommend reserving additional space for maintenance and operator safety.

Key Details

1. Precision Control: Achieves optimal fermentation environment using microcomputer technology. Pre-set start and end times for automatic operation without manual monitoring.

2. Large Capacity: 18 layers meticulously designed; each layer accommodates two baking trays, allowing 36 trays to proof simultaneously. (Note: Distance between layers is 8cm / 3.15 inches).

3. Mobility: Equipped with easy-to-operate wheels at the bottom to easily move between different working areas.

4. Water Supply: Equipped with a dedicated water supply pipe to ensure consistent humidity control.

Technical Specifications
Model Dimension Tray Size Temperature V&P N.W
10-tray refrigerated 840*760*930mm 400*600mm 2~40°C 220V/1kW 75kg
10-tray frozen 840*760*930mm 400*600mm -15~40°C 220V/1kW 75kg
18-tray refrigerated 600*955*2100mm 400*600mm 2~40°C 220V/2kW 150kg
18-tray frozen 600*955*2100mm 400*600mm -15~40°C 220V/2kW 150kg
36-tray refrigerated 800*1155*2100mm 400*600mm 2~40°C 220V/2kW 220kg
36-tray frozen (BO-36D) 800*1155*2100mm 400*600mm -15~40°C 220V/2kW 220kg

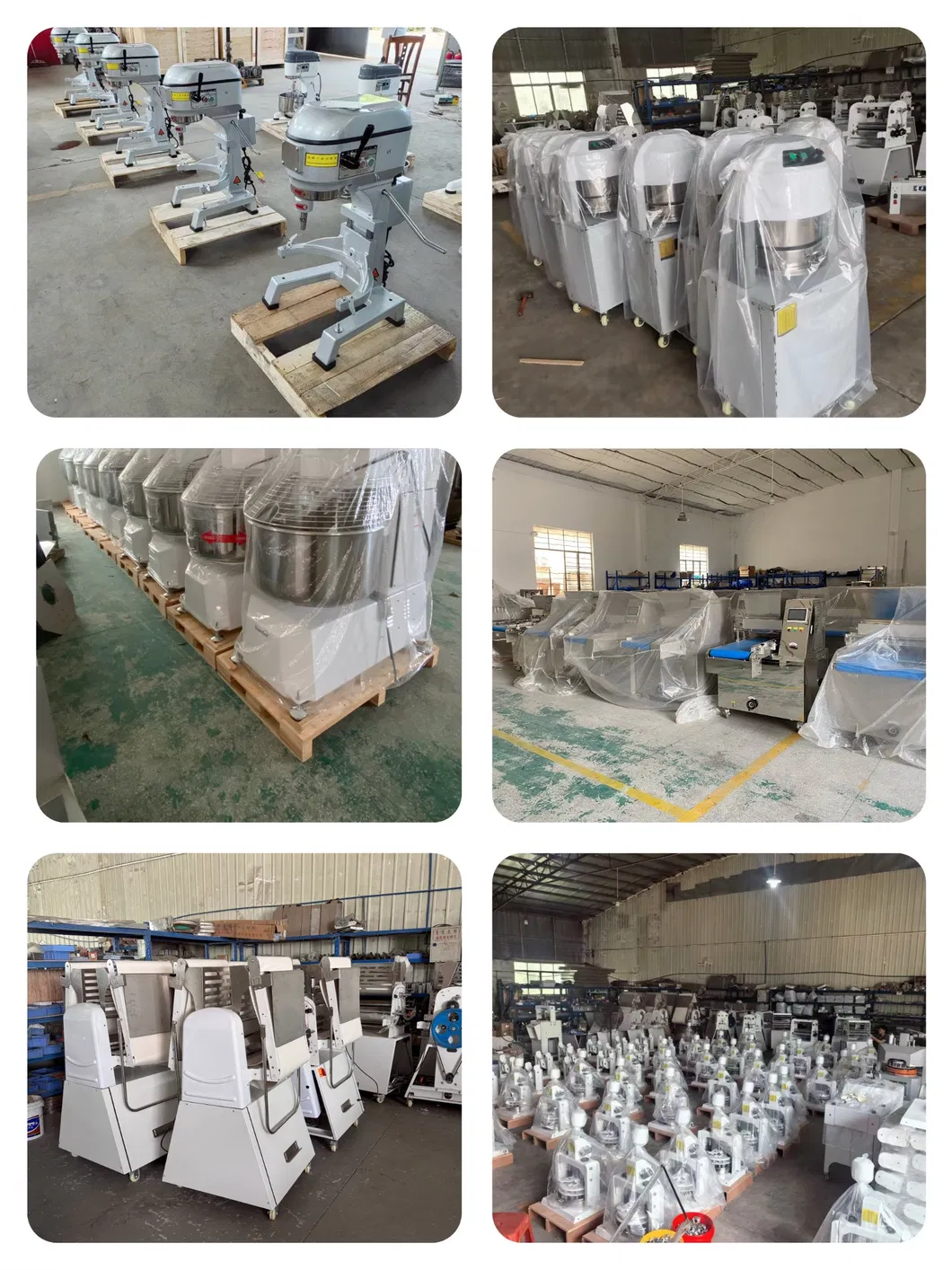

Factory & Production

We are a professional manufacturer specializing in baking equipment with a decade of experience. Our products range from rotary ovens to dough mixers and proofing cabinets. We have established a comprehensive sales system and a prompt after-sales service network globally.

Frequently Asked Questions
Are you a factory or a trading company?
We are a factory manufacturing commercial baking machines and we provide perfect OEM and after-sale service.
How can I know your machine works well before delivery?
Before delivery, we shall test the machine working condition for you and can provide videos of the operation.
What is the temperature range of the BO-36D model?
The temperature range for the frozen proofing model is -15°C to 40°C, suitable for refrigeration, freezing, and proofing.
Can the machine be customized for specific tray sizes?
We provide customized shelves to ensure the proofing cabinet can be adjusted according to your specific needs.
How many trays can the cabinet hold at once?
This model features 18 layers, with each layer holding two 400*600mm trays, totaling 36 trays.
What payment methods do you accept?
We accept T/T, Electronic Check, Credit Card Payment, and other third-party payment platforms.
