China Manufacturer 3 Burner Freestanding Commercial Gas Turkey Deep Fat French Fries Chicken Fish Chips Fryer Machine ETL/CE Listed 90000BTU (GF90)

Customization: Available
After-sales Service: One-Year Limited Warranty on Parts
Warranty: One-Year Limited Warranty on Parts

Product Description

📋 Basic Info.
Model NO.
GF90
Usage
French Fries, Fried Fish, Fried Chicken
Power Source
Gas
Timing Device
Without Timing Device
Type
Gas Fryer
Customized
Non-Customized
Certificate
CE, ETL
Total Input
90,000 BTU/Hr
Number of Tank
1
Number of Basket
2
Control System
Robertshaw Control System
Gas Type
Natural Gas, Liquid Propane
Weight
143 Lbs
Specification
15.5x30.2x46.5 inch
Production Capacity
4000PCS/Month
📦 Packaging & Delivery
Package Size
46.00cm * 83.00cm * 86.00cm
Gross Weight
71.000kg
Transport Package
Carton with Pallet
🔥 Product Description

GF90 Gas Fryer has two designs as below photos.

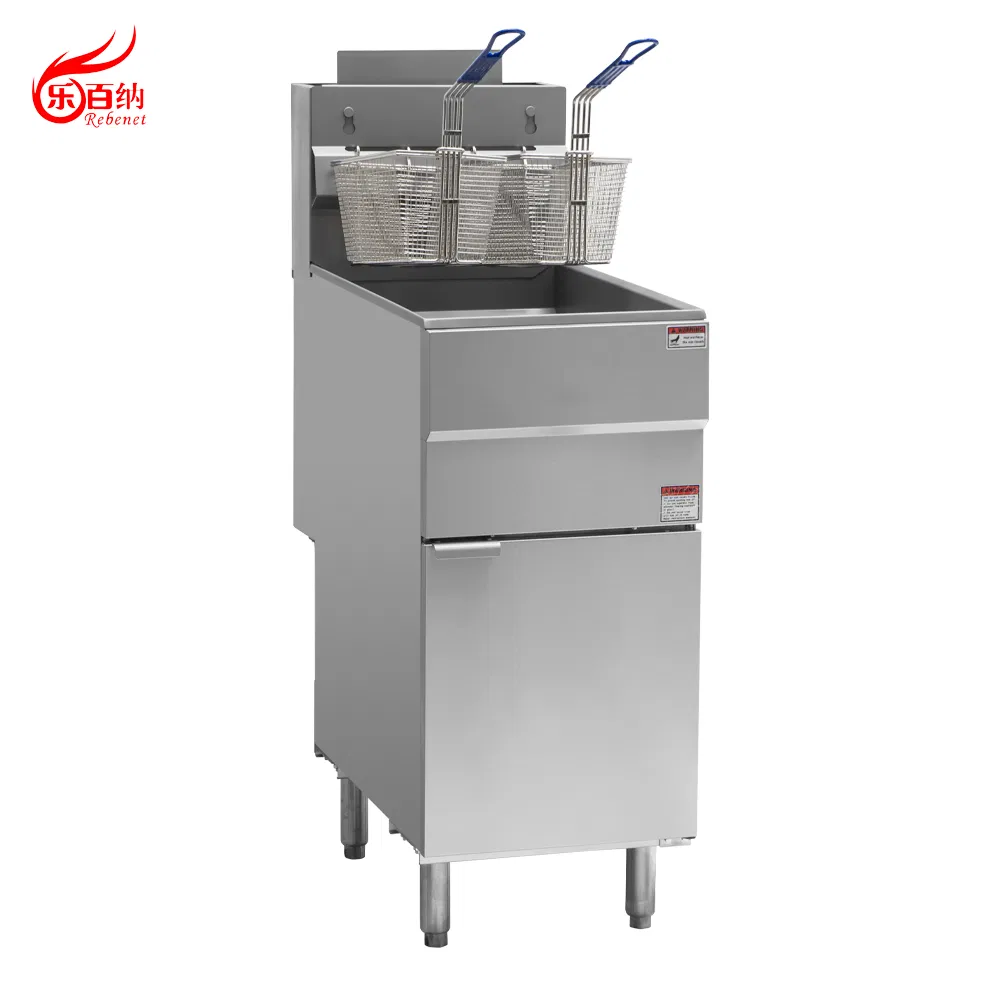

GF90 Gas Fryer Design

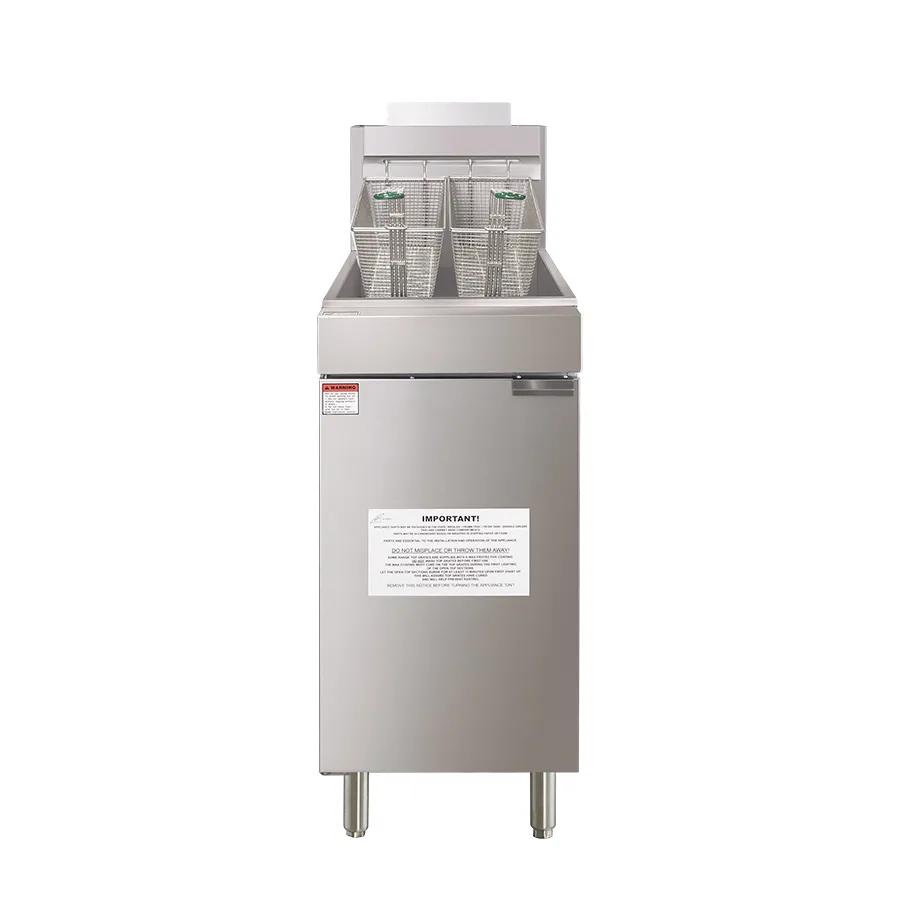

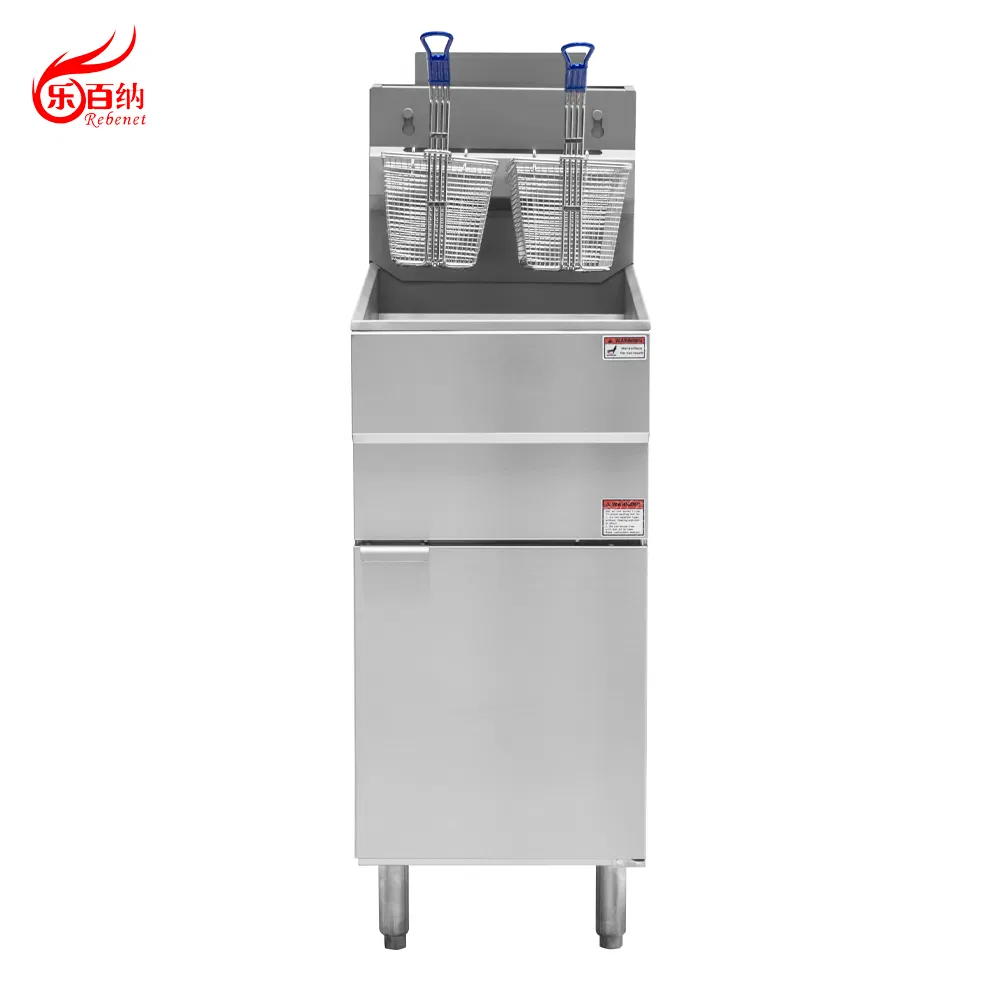

Fryer Front View Fryer Side View

Gas floor fryer product details

  • Vertical cast iron burner, each 30,000 BTU/hr
  • Stainless steel vat, available in 4 models
  • 6" stainless steel adjustable heavy duty legs
  • Tube design with baffles inside for better heat transfer
  • Continuous pilot for easy start of main flame

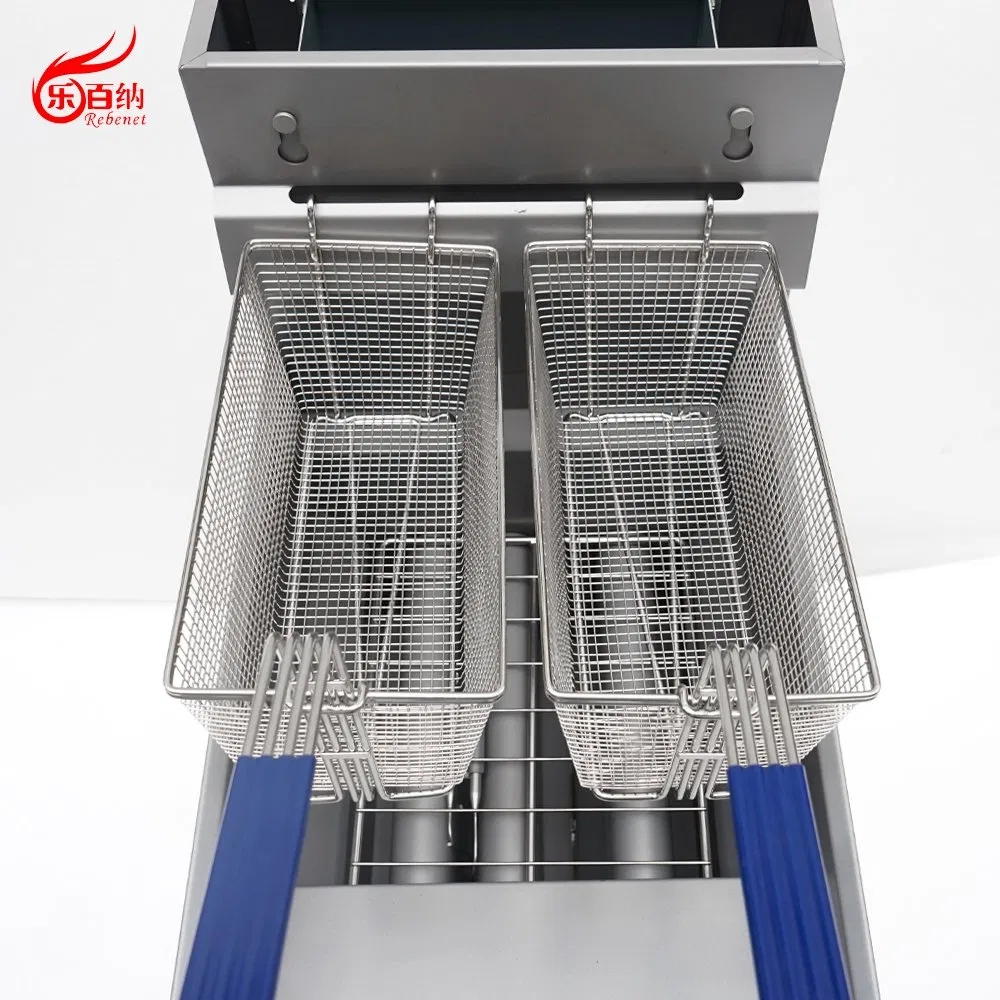

  • Chromed basket with plastic coating handle
  • Large cold zone to prevent scorching of food particles at the bottom

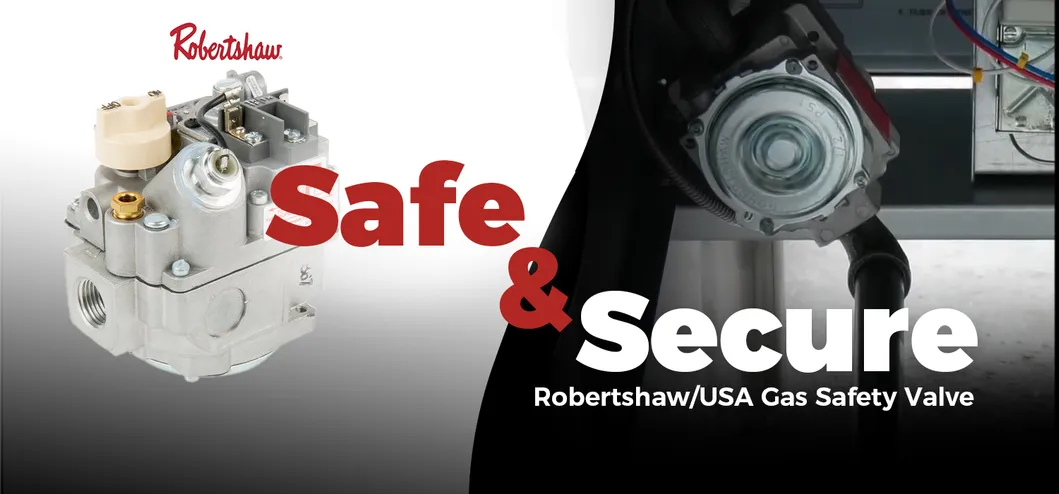

  • Robertshaw control system to guarantee best performance
  • Prompt temperature recovery to make sure fries are crispy
  • 1 ¼" drain cock for easy drainage of oil

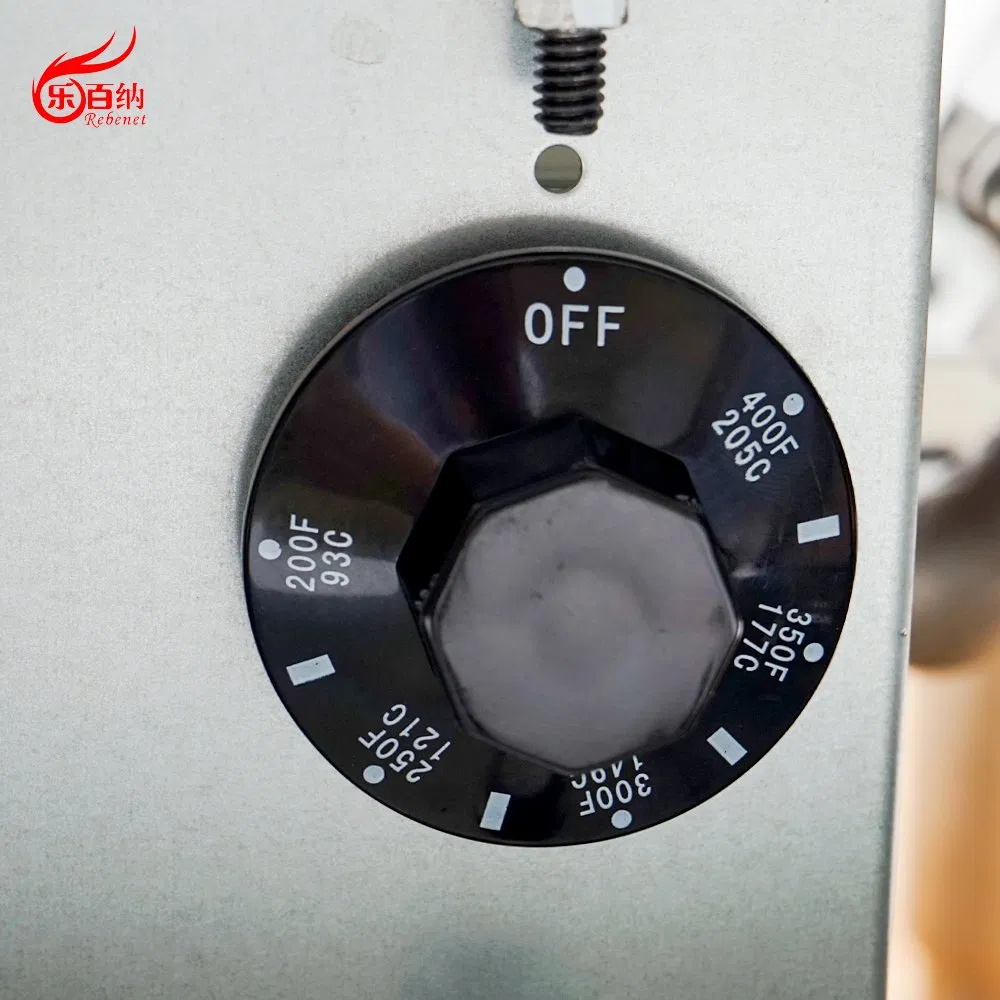

  • Thermostat adjusts from 93ºC/200°F to 204ºC/400°F
  • 450°F/232ºC hi-limiter guarantees safety
  • Optional with castors
Model Description Total Input (btu/hr) Product (W x D x H) Packing (W x D x H) NW GW
GF90-N Natural Gas Fryer 90,000 394 x 767 x 1182 mm
15.5 x 30.2 x 46.5 inch
460 x 830 x 860 mm
18.1 x 32.7 x 33.6 inch
65 kg / 143 lbs 71 kg / 156 lbs
GF90-P Liquid Propane Gas Fryer 90,000 394 x 767 x 1182 mm
15.5 x 30.2 x 46.5 inch
460 x 830 x 860 mm
18.1 x 32.7 x 33.6 inch
65 kg / 143 lbs 71 kg / 156 lbs

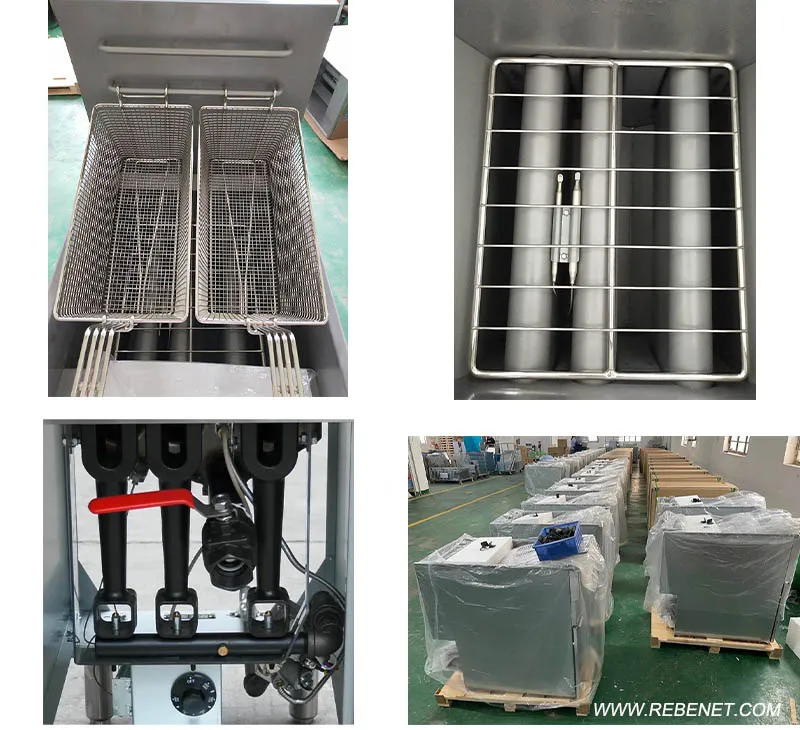

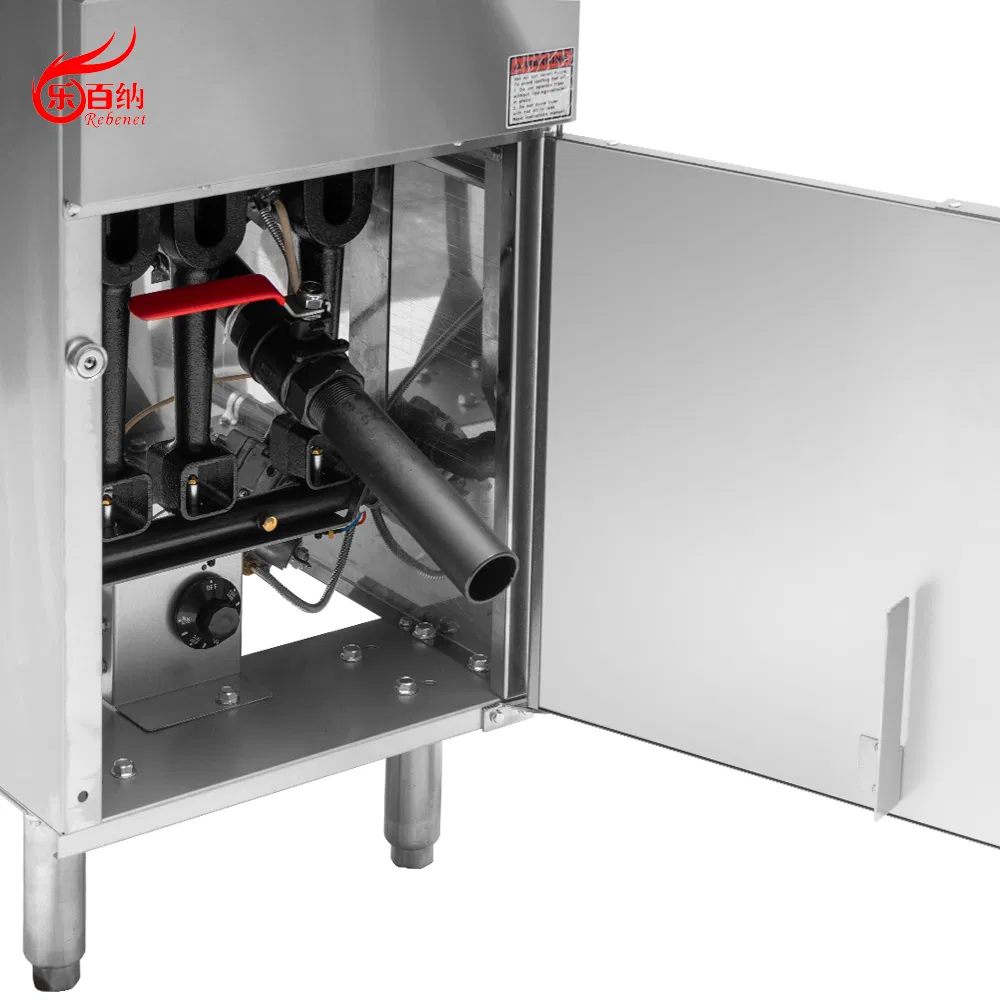

Internal Components

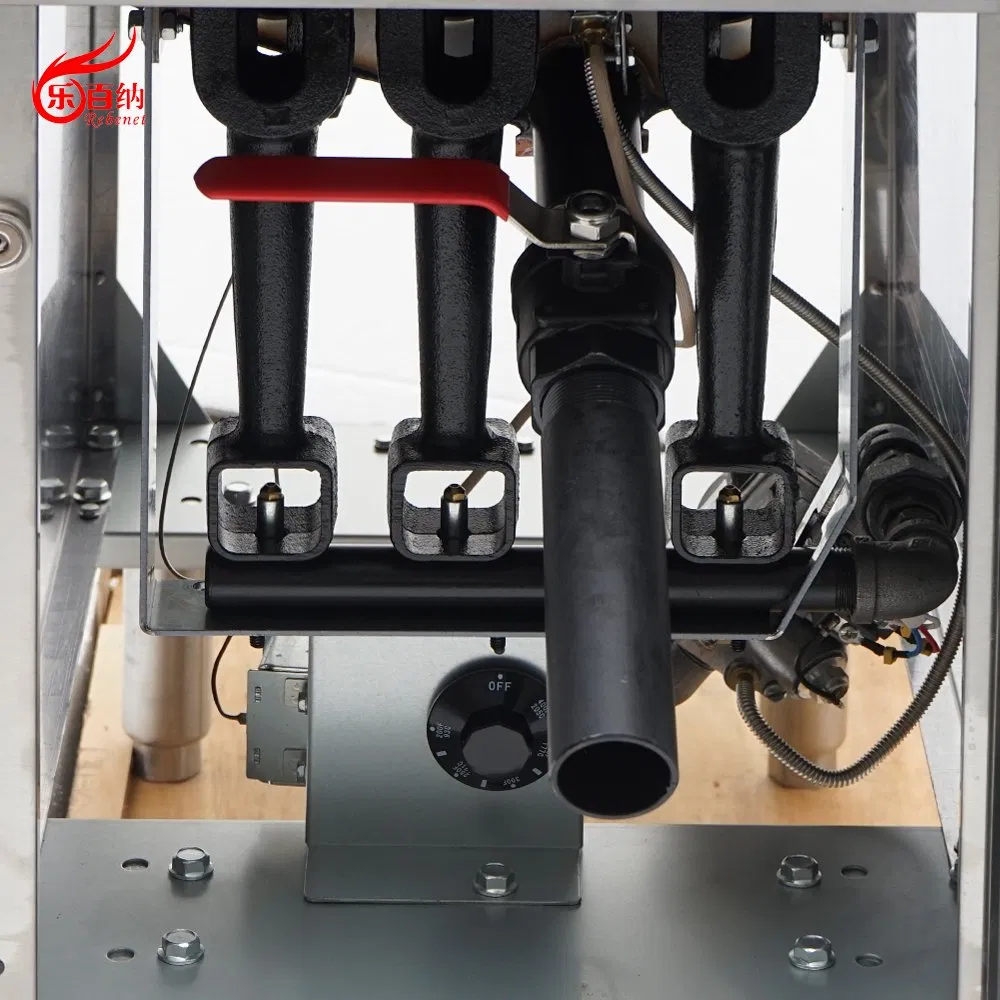

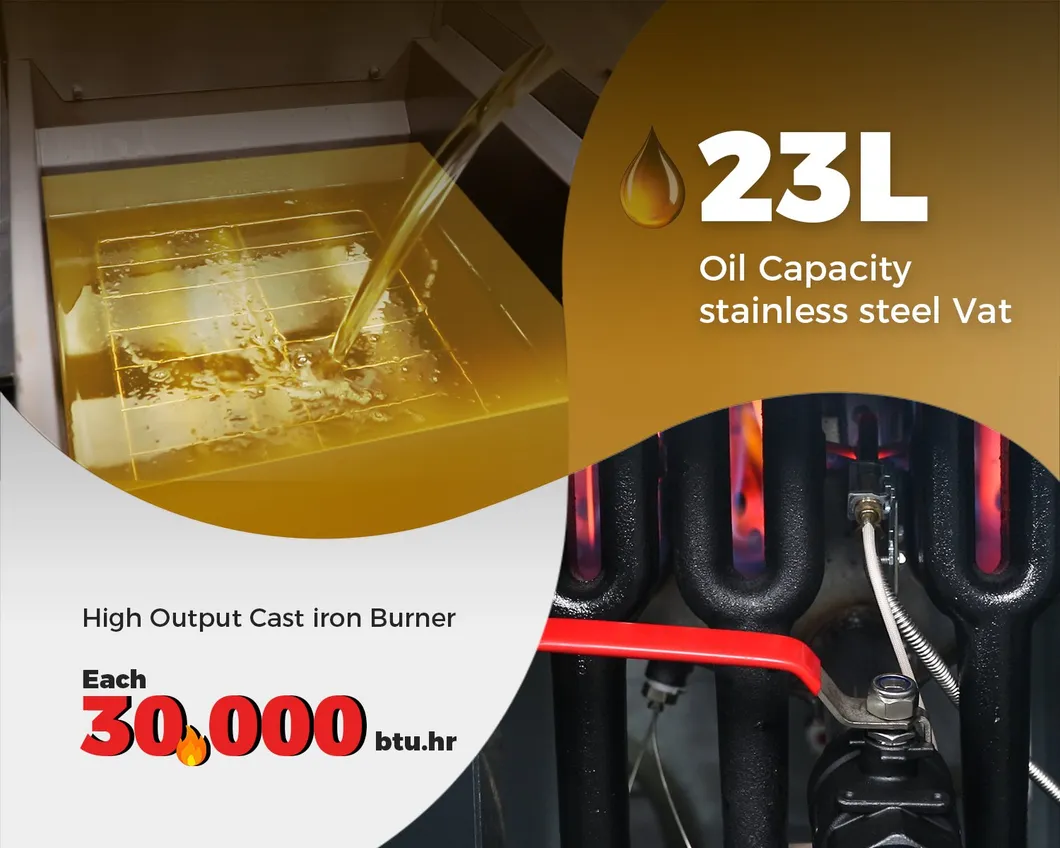

Burner Detail Control System
Drain Valve Basket Detail
🏭 About Us

We are a professional manufacturer of catering equipment with more than 600 varieties of products, such as electrical and gas equipments used in hotels, restaurants, cafés, quick-serve restaurants, convenient stores, bars, supermarkets, etc. The manufacturing facility covers an area of over 20,000 square meters.

We have gained state manufacturing licenses for all products. Many product categories have been certificated by CE, ETL, Rohs, REACH or LFGB. We have passed ISO9001, ISO45001, and ISO14001 certifications.

With a wide variety of products, competitive prices, robust structure, and rigid quality, our products are exported to more than 60 countries and areas worldwide. We welcome OEM/ODM projects.

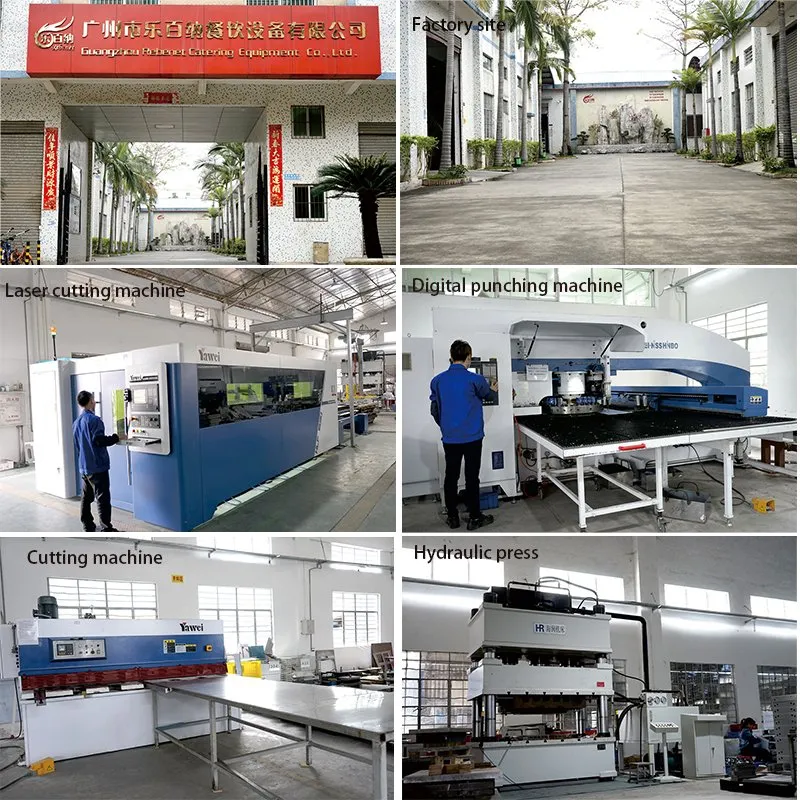

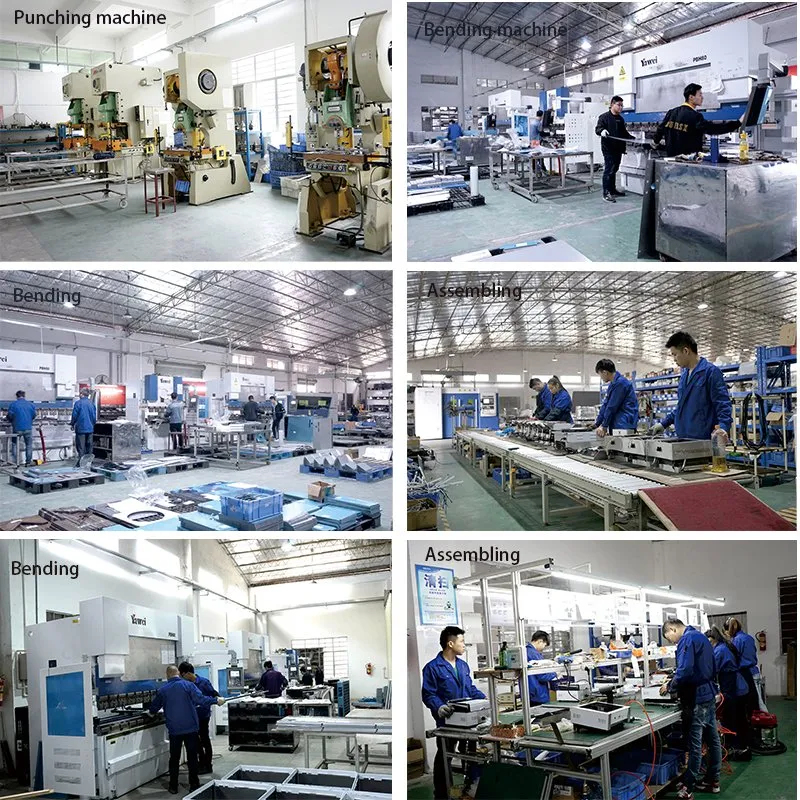

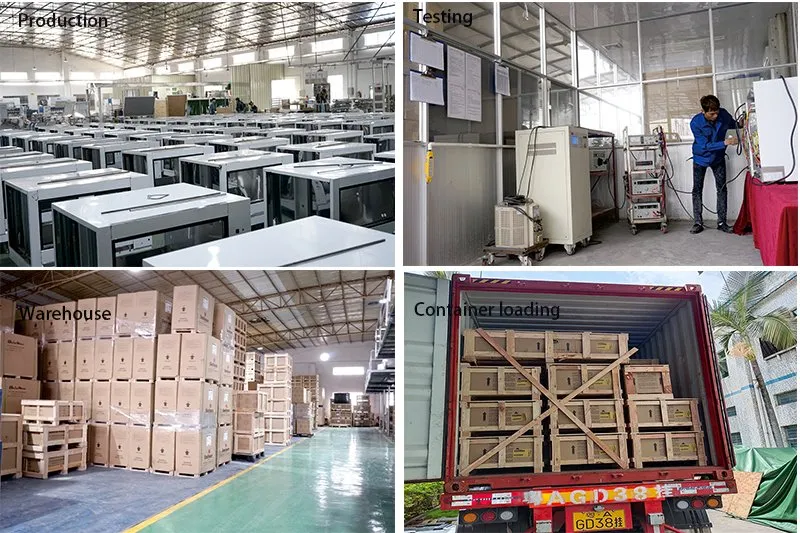

Factory Overview Production Line Warehouse

Certifications

Certificates
Frequently Asked Questions
What products do you manufacture?
We manufacture gas ranges, gas fryers, salamanders, hotplates, stockpots, radiant broilers, griddles, electric fryers, noodle boilers, convection ovens, combi steamers, panini grills, waffle bakers, toasters, pizza ovens, and more.
What is your payment terms?
We accept T/T and Western Union, etc. Usually, a 30% deposit is required, with the balance due before shipment.
What is the delivery time?
Standard production takes approximately 30 days after receiving the initial deposit.
What are your services?
We have a professional design team for OEM or ODM requirements. All products come with a 12-month warranty.
What is the MOQ of your products?
The Minimum Order Quantity (MOQ) is typically 5 pieces for most of our standard models.
Can we use our own logo on the products?
Yes, we provide branding services and can place your logo directly on the products.
