| Customization: | Available |
|---|---|
| After-sales Service: | Online & Video Tech Support, Filed Installation.T |
| Warranty: | 1 Year |
| Model NO. | ZBJ-20, ZBJ-40, ZBJ-80, ZBJ-125 | Power Source | Electric |
|---|---|---|---|
| Process | Normal | Automatic Grade | Automatic |
| Type | Bowl Cutter | Voltage | 380V |
| Material | SUS304 | Total Power | 2.95~22.75kw |
| Working Capacity | 10~100kgs/Bowl | Blade Speed | 1420~5000 Rpm |
| Blade Number | 3~6 PCS | Bowl Speed | 12 or 17 Rpm |
| Origin | Shandong, China | HS Code | 84385000 |
| No. | Service items | Our promises |
|---|---|---|
| 1 | Core parts (motor, bearing) | 1 year |
| 2 | Spare parts | provide at cost |
| 3 | Online and video technology support | free of charge |
| 4 | Return order discount | 2~4% |
| 5 | Related machine resource | can help free of charge |
| 6 | Field installation and maintenance | chargeable |

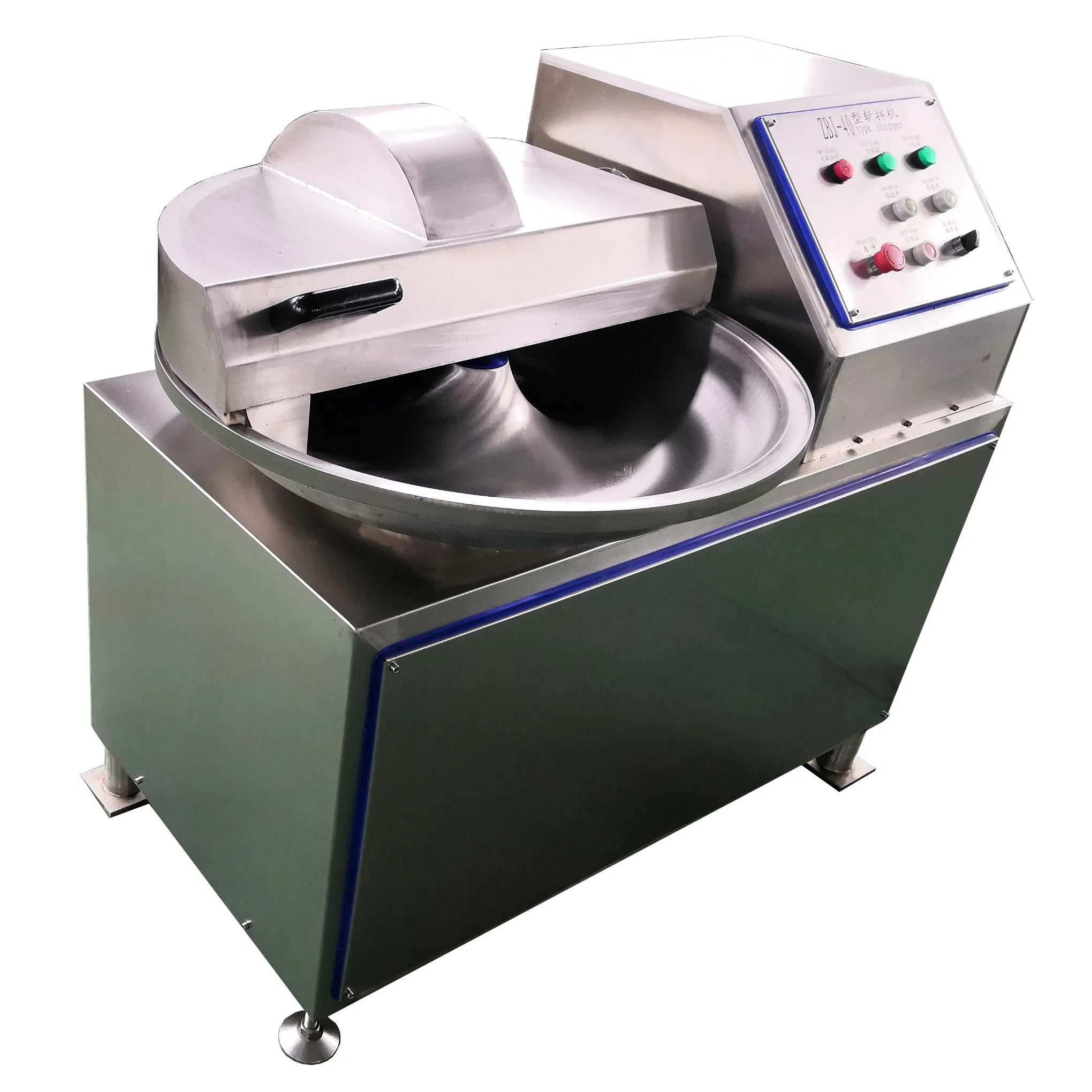

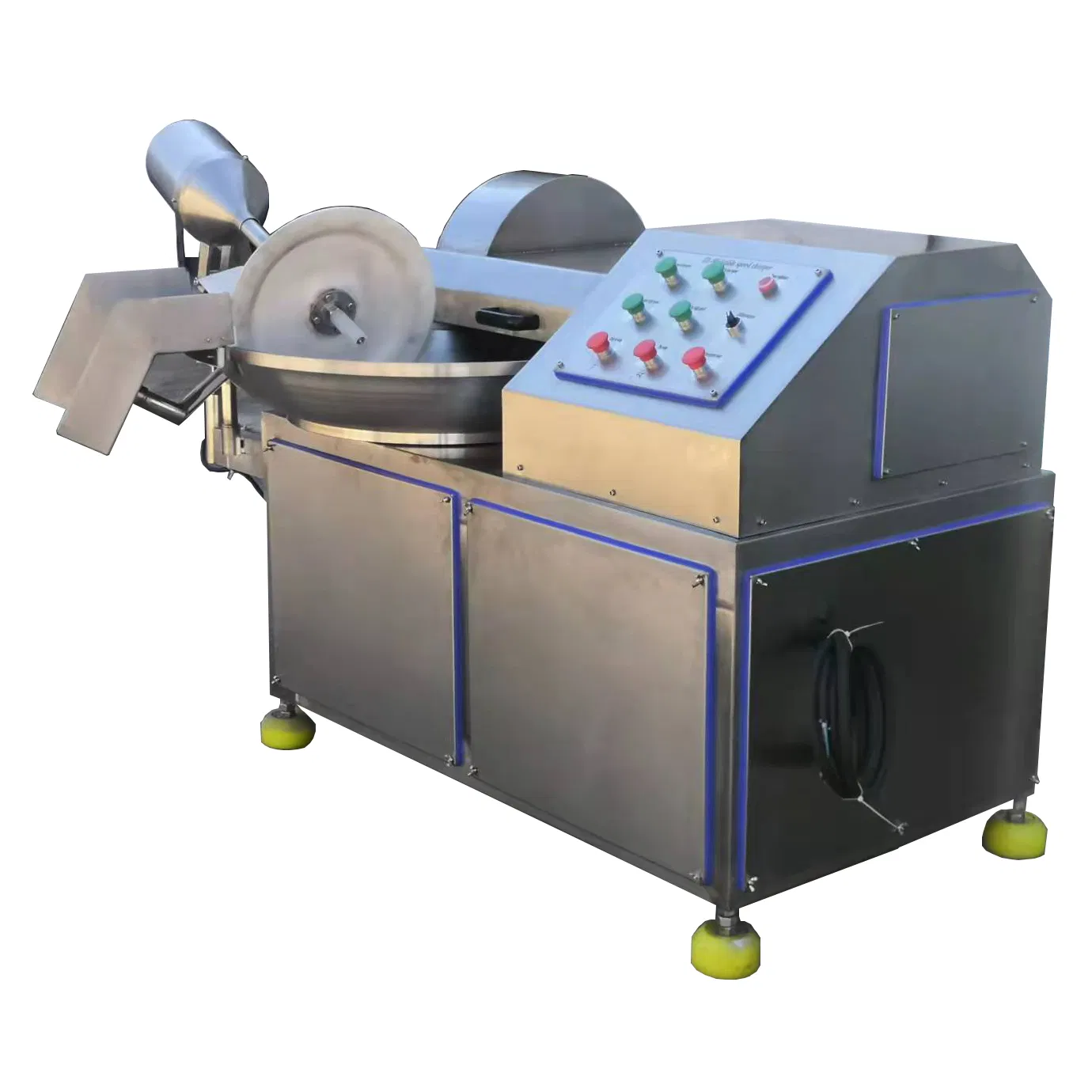

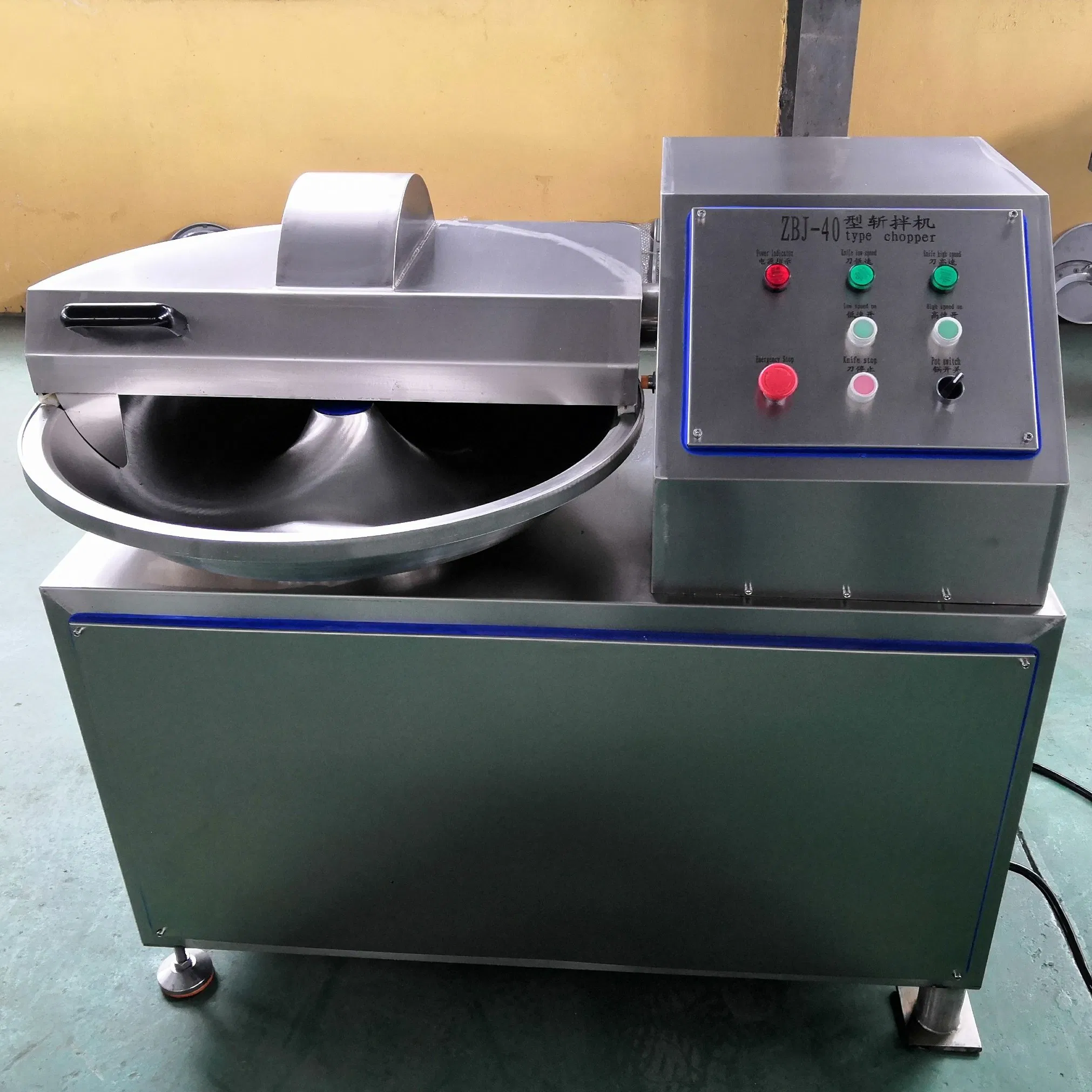

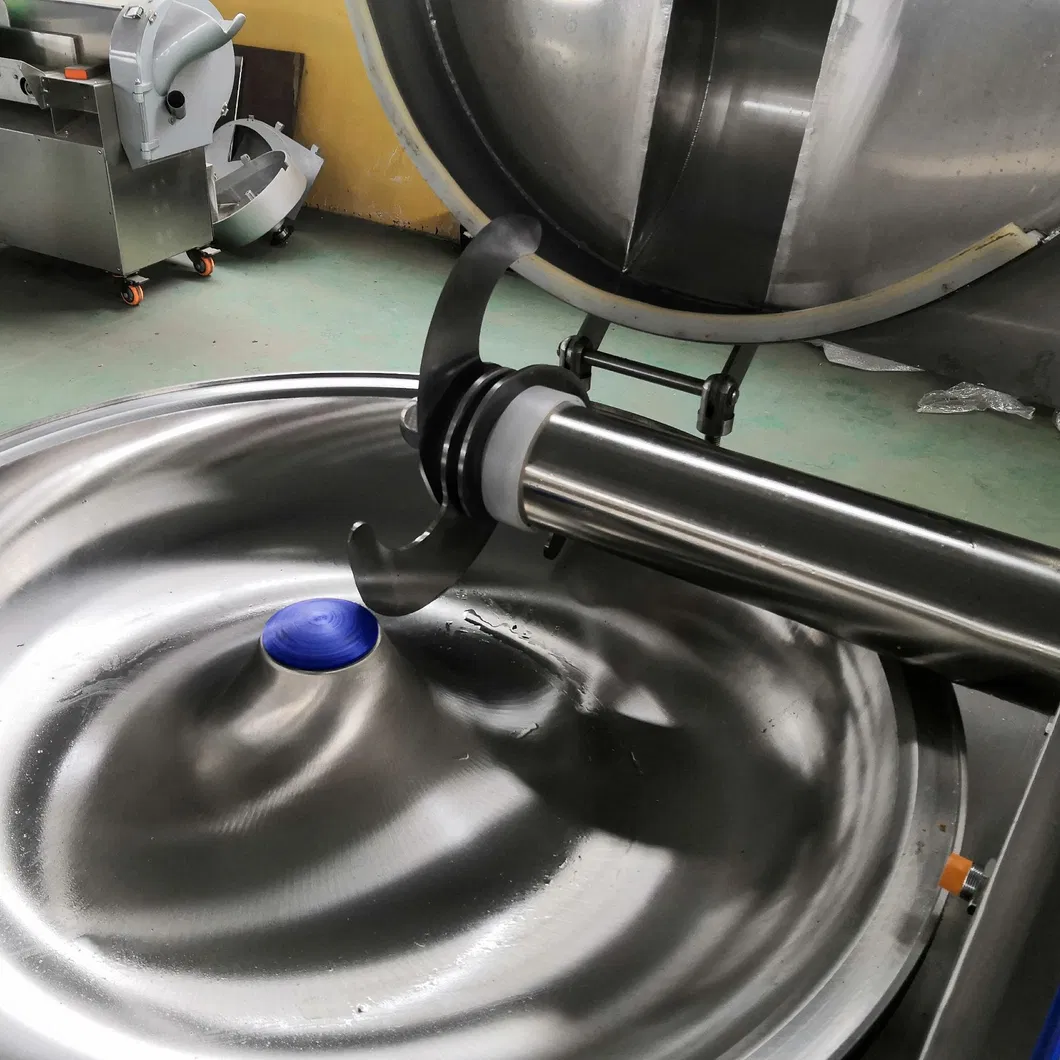

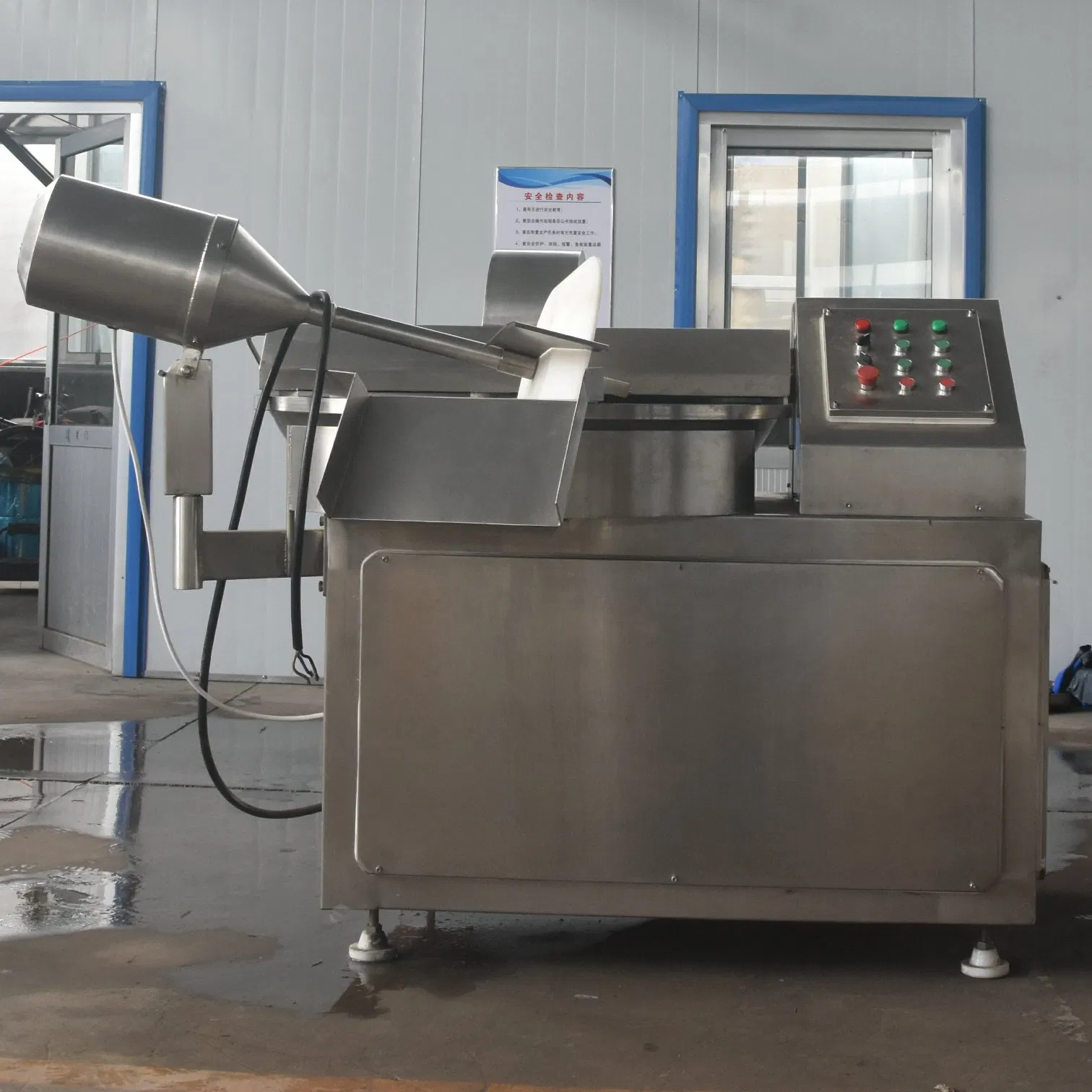

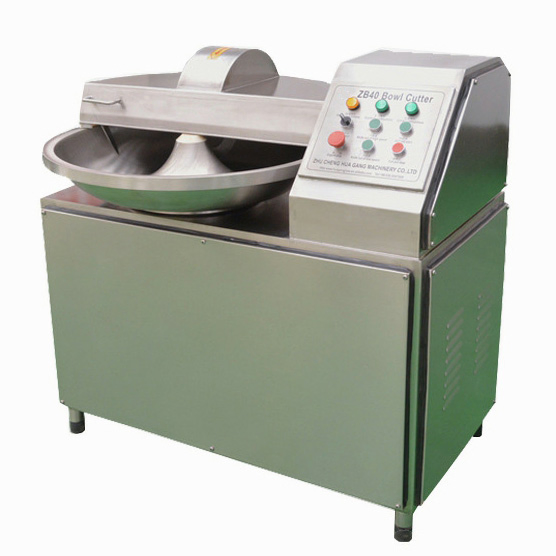

Bowl cutter is a kind of key machine in meat product processing like sausage and meat ball. It uses the high-speed rotating knives and bowl to cut raw materials into minced pieces and make them evenly. The machine can not only cut materials but can also stir materials and additives like water, condiment to even cream, by this process, the emulsification degree, flavor and output of materials can be enhanced.
It is widely used in the processing of meat, vegetables and bean products. it is also a kind of necessary machine to process meat balls, sausages, toufu, fish toufu, pies and dried eggs.

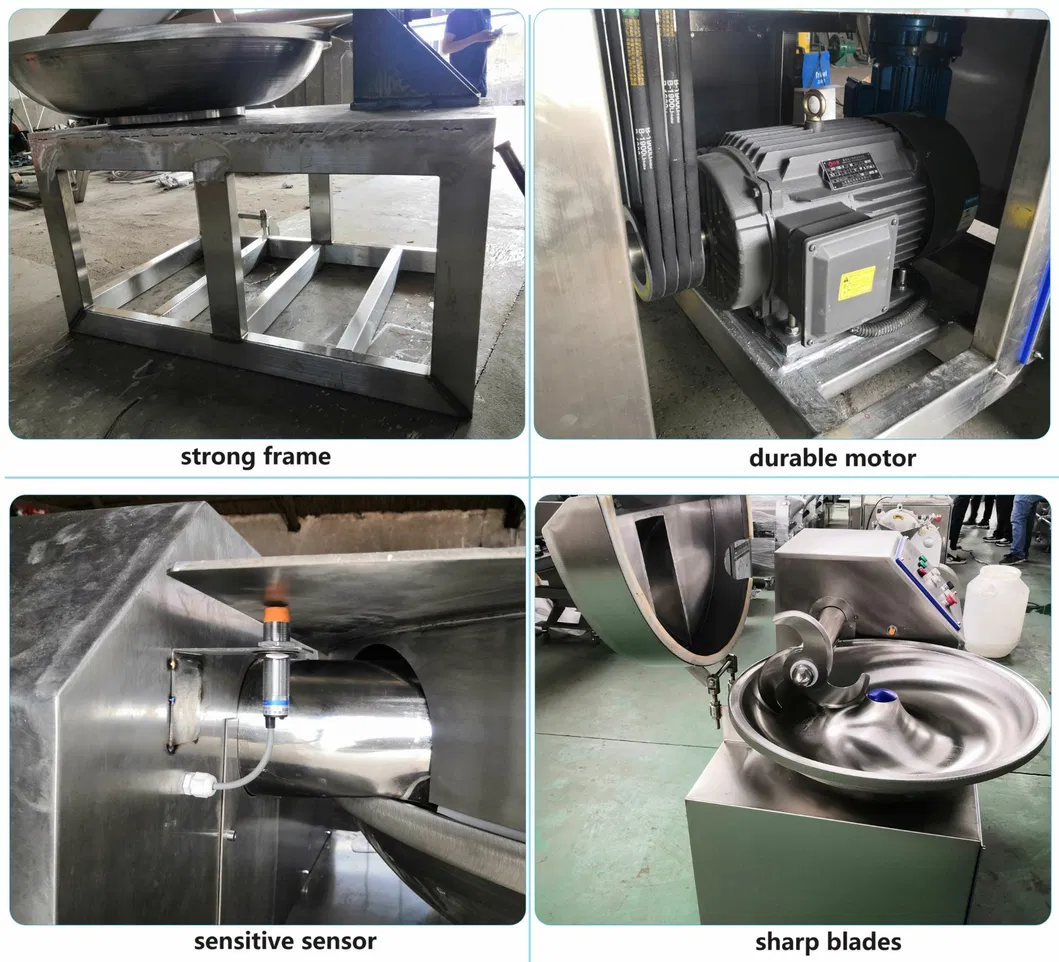

The machine is easy to be operated by control panel, frequency conversion of blade and bowl speed can be customized. All parts contacting food are of stainless steel 304, the outer casing can be stainless steel 304 or 201 at your option. It's strong and easy to be washed.






| Model No. | ZBJ-20 | ZBJ-40 | ZBJ-80 | ZBJ-125 |
|---|---|---|---|---|
| Voltage & Frequency | 220V/380V, 50/60HZ | 380V, 50/60HZ | ||
| Total power (KW) | 2.95 | 4.75 | 13.75 | 22.75 |
| Capacity (kg/bowl) | 10~15 | 20~30 | 40~60 | 80~100 |
| Blade number (PC) | 3 | 3 or 6 | 6 | 6 |
| Blade speed (RPM) | 1420 | 2880 | 3000-3880 | 3800-4220 |
| Bowl speed (RPM) | 12/17 | 12/17 | 12/17 | 12/17 |
| Dimension (mm) | 840*650*880 | 1100*900*1000 | 1600*1600*1150 | 2230*1380*1300 |
| Weight (kg) | 200 | 440 | 800 | 1200 |

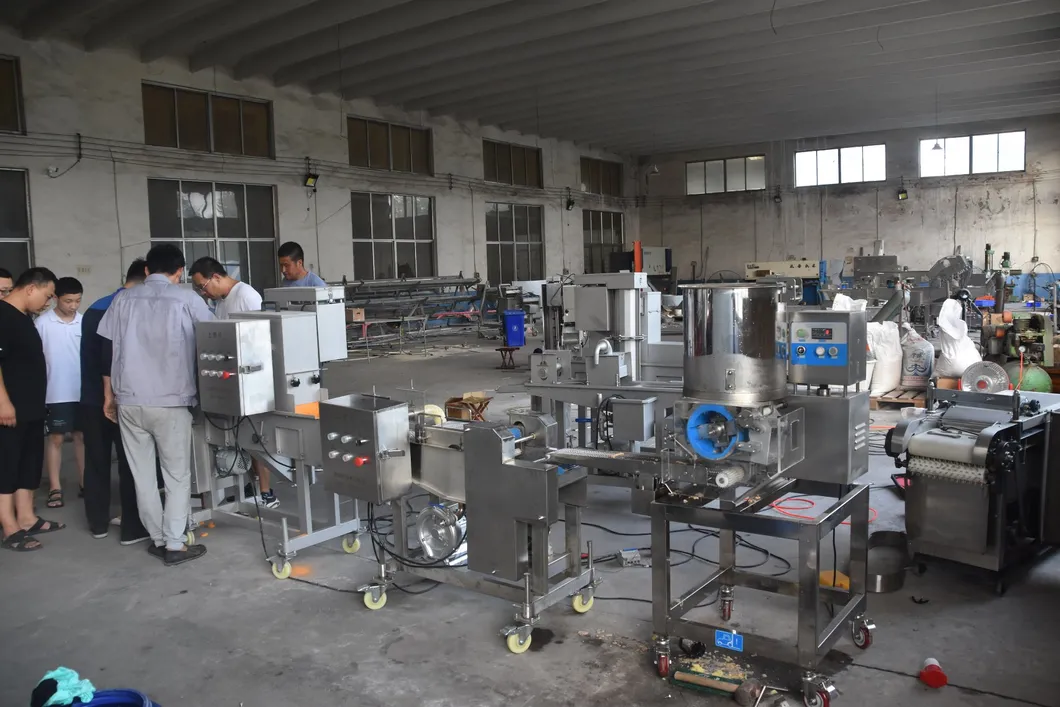

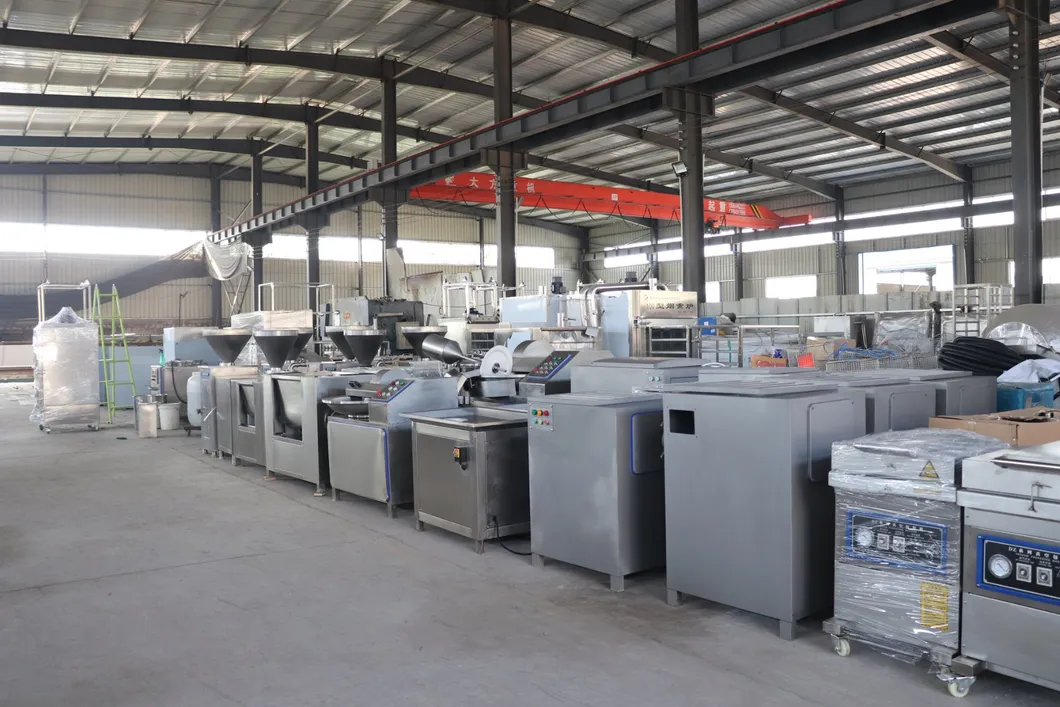

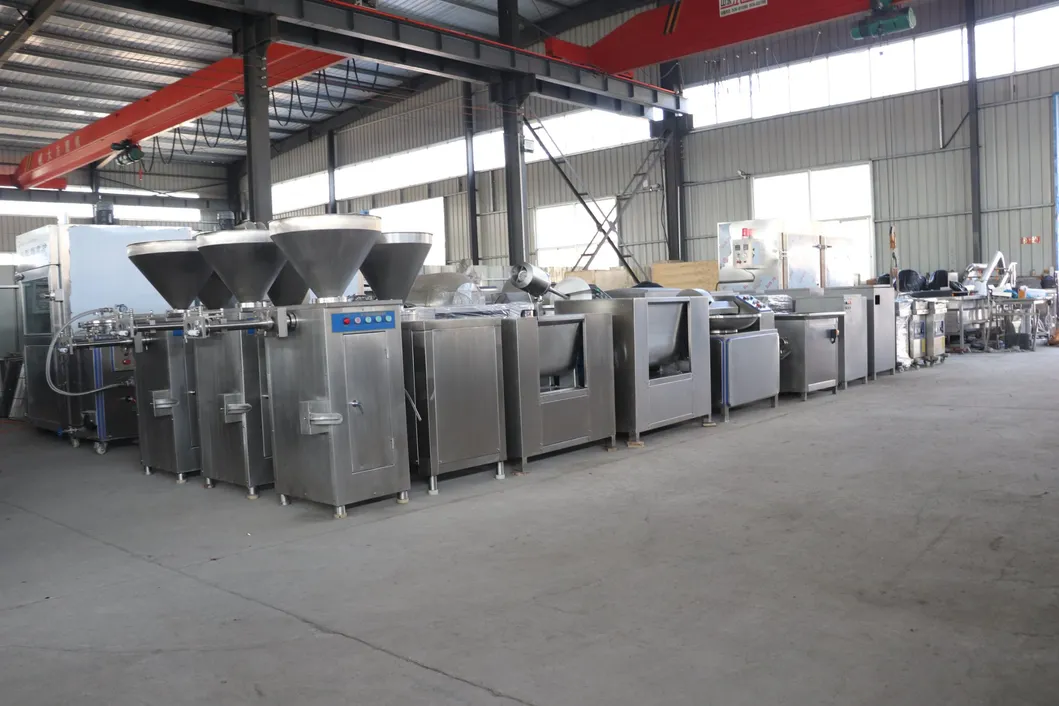

We are a professional food machinery manufacturer and sale company with a dynamic team having over 15 years of experience in foreign trade. We provide comprehensive solutions for food machine design, manufacture, installation, and maintenance.
