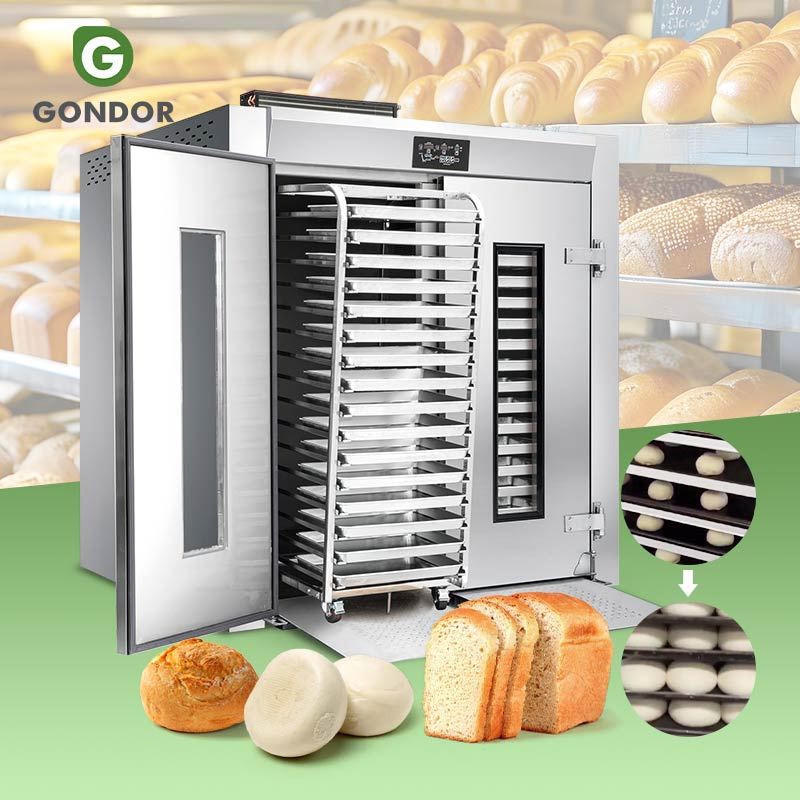

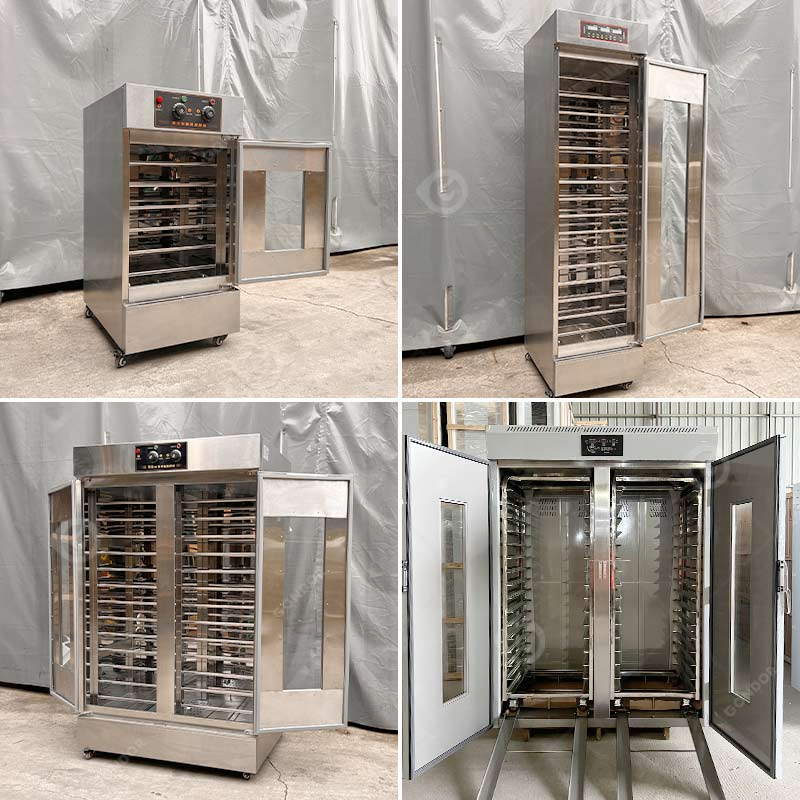

Commercial Stainless Steel Electric Heater 6 36 Tray Single Door Box Bakery Proving Pizza Dough Bread Proofing Cabinet Machine

Still deciding? Get samples of $ !
Order Sample

Product Description

⚙️ Basic Information
Model NO.
GD-DPFM17
Usage
Biscuit, Cake, Pizza, Bread, Dough
Power Source
Electric
Timing Device
With Timing Device
Type
Dough Fermentation
Voltage
380V/220V
Tray Size
400*600mm
Number of Tray
5/6/10/13/16/26/32 Trays
Temperature Range
0~60°C
Humidity Range
Environmental Humidity~95%
Core Selling Point
High Productivity
Power
1.5kw
📝 Product Description

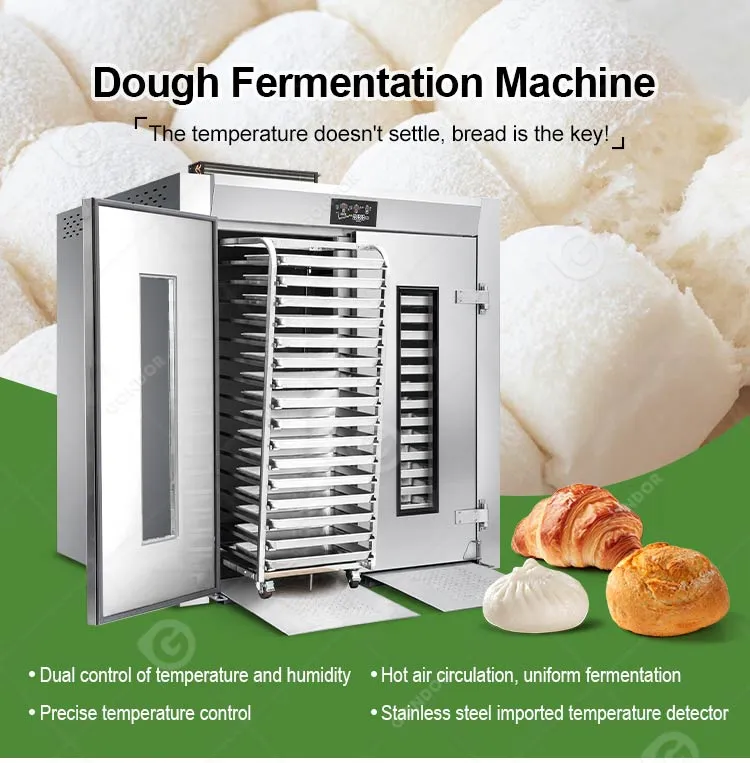

Dough Proofing Cabinet
Introduction: Dough fermentation machine heats the water in the water pan through the electric heating tube, and uses the temperature control circuit to adjust the environment in the box, so that the temperature and humidity can reach the best conditions for the dough fermentation.
The applicable products cover the fields of Chinese and western baking and pastries, including bread (such as toast, European bread, sweet bread, etc.), Chinese traditional pastries (such as Mantou, steamed buns, Steamed rolls), western pastries (such as pizza base, Danish pastry), and standardized dough samples required for experimental testing.
📊 Technical Parameters

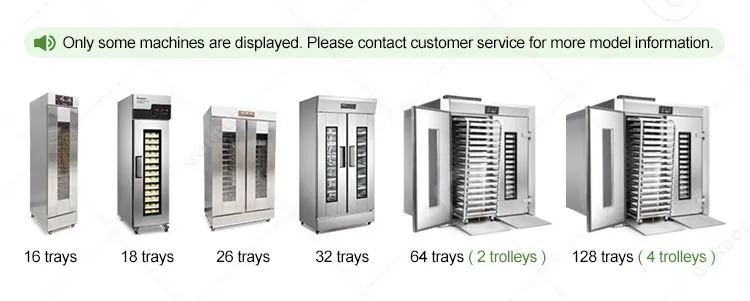

Machine Parameters
Model Temperature Range Humidity Range Number of Trays Tray Sizes Weight Size(mm)
MDFM16 Normal Temp ~ 85℃ Normal Humidity ~ 110%RH 16 400*600mm 207kg 600*955*2100
MDFM32 32 288kg 1200*955*2100
MDFM64 64 480kg 1720*1240*2130
MDFM128 128 970kg 1920*2030*2290
⭐ Key Features
1. Efficient Circulation
Hot air circulation configuration ensures that every layer and space can fully ferment.
2. Superior Insulation
Thickened glass window to improve insulation effect and visibility.
3. Heavy-Duty Frame
Stainless steel frame with strong load-bearing capacity, adjustable and detachable.
4. Durable Material
Thick stainless steel body, corrosion-resistant, easy to clean, and stable operation.

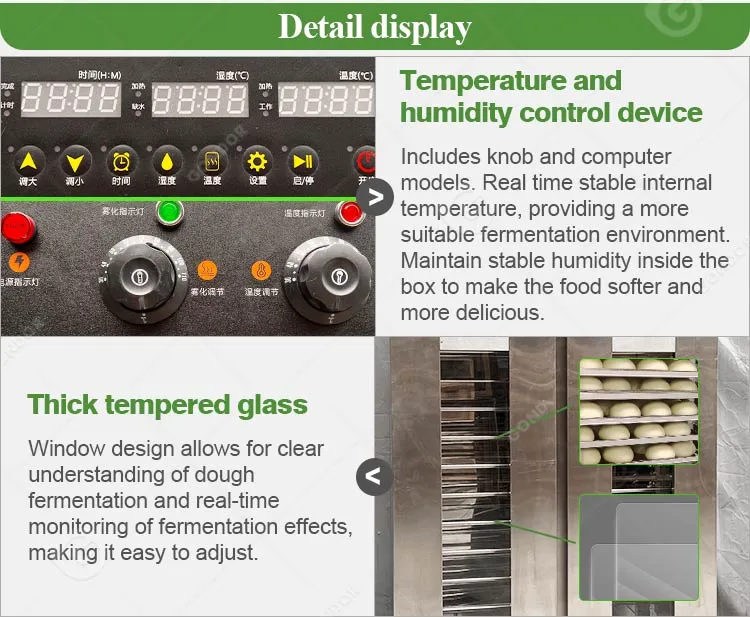

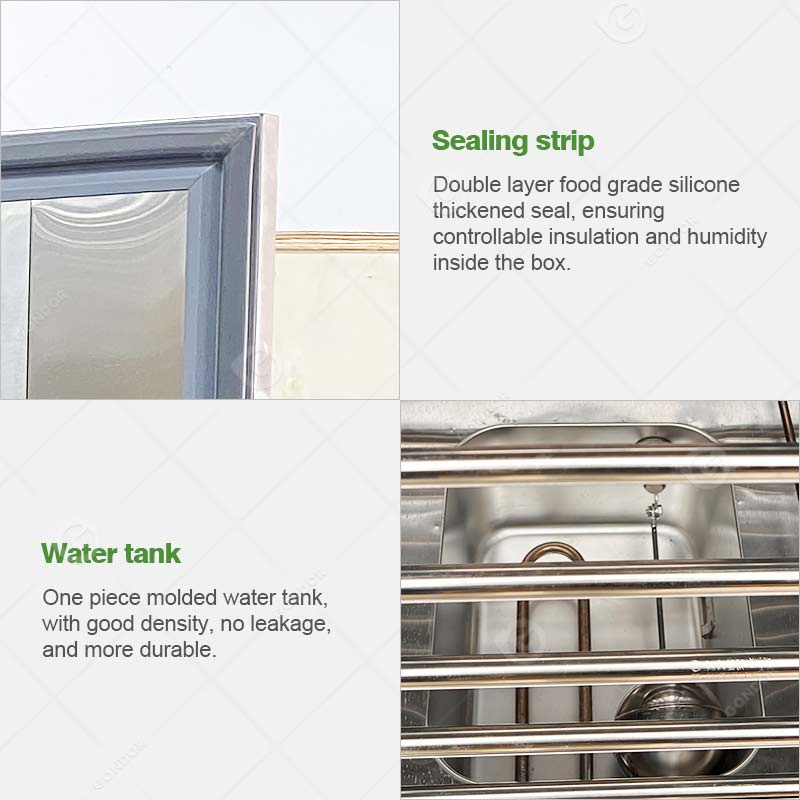

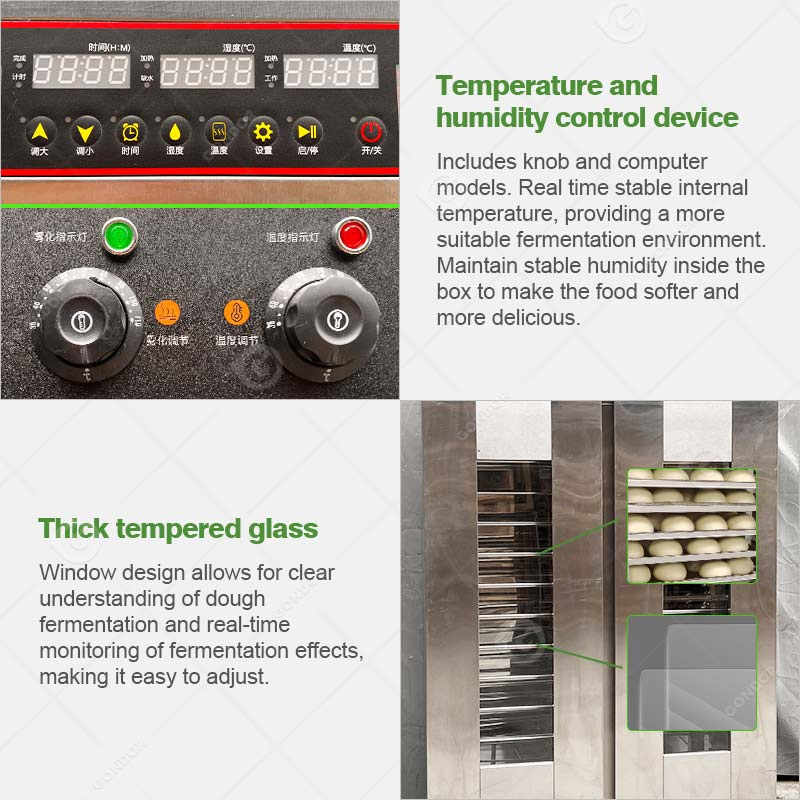

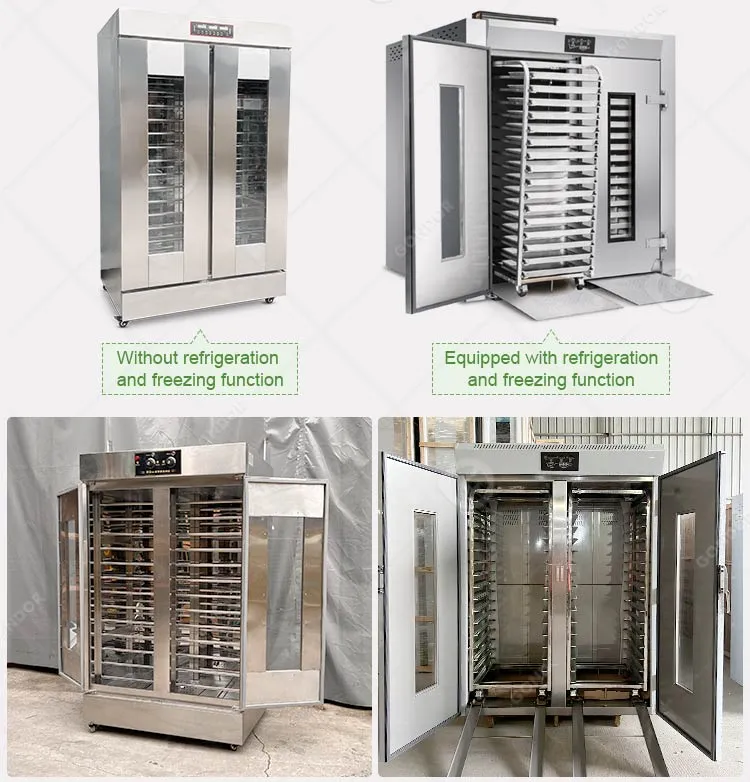

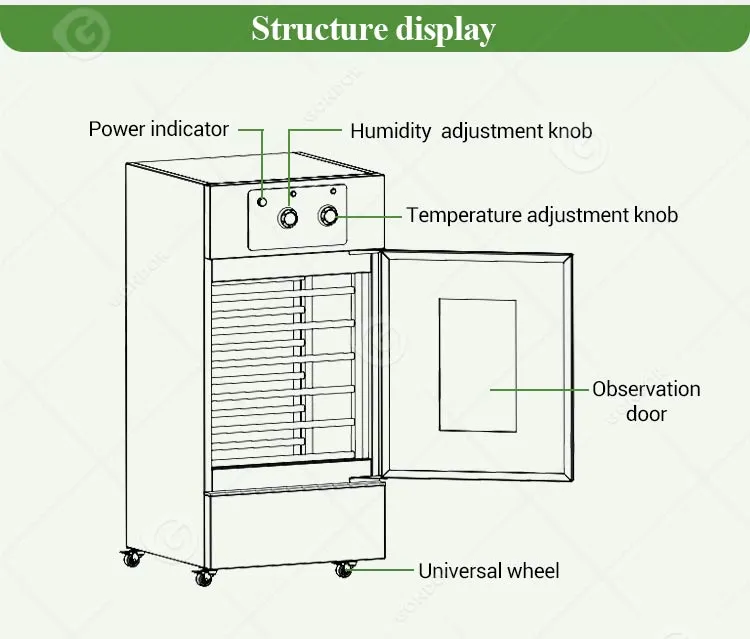

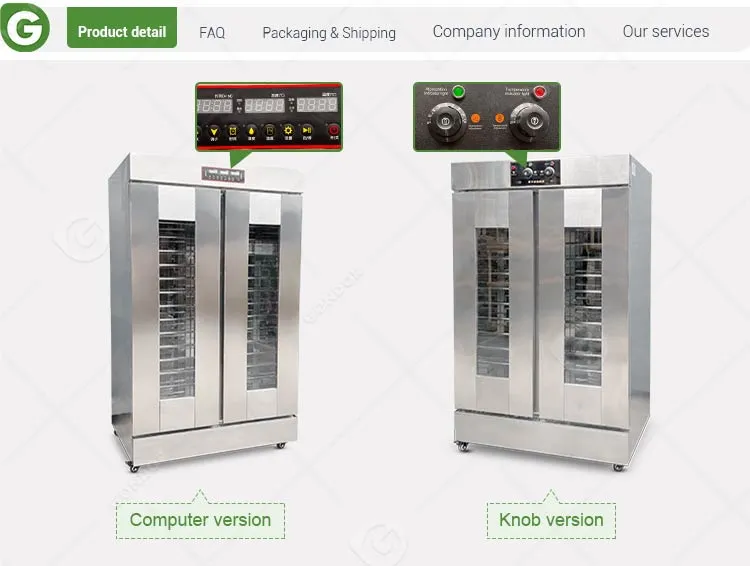

🔍 Details Images

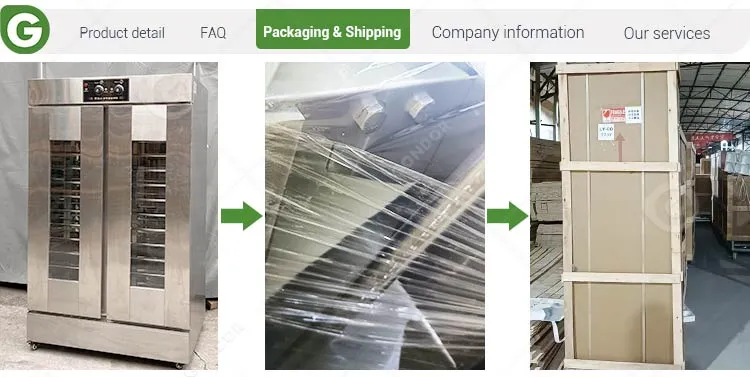

📦 Packing & Delivery
  • Waterproof membrane installation to reduce dust and water pollution.
  • Standard export wooden cases are used to minimize bumps during international transportation.
  • Fast logistics to provide smooth delivery services globally.
🛠️ Our Services
Service Support
24-hour communication service for all inquiries.
12 months warranty and lifetime technical support.
Professional logistics and smooth delivery service.
New product recommendations and official invitations for visits.
❓ Frequently Asked Questions
What is the main function of the fermentation box?
Through precise control of temperature (35 – 40 ℃) and humidity (75 – 95%), it provides the best fermentation environment for dough, promotes yeast activity, and improves the quality of bread and pasta products.
What is the difference between a proofing box and regular fermentation?
Ordinary fermentation relies on room temperature with large fluctuations. The proofing box ensures stable and efficient fermentation through intelligent regulation, resulting in more uniform professional results.

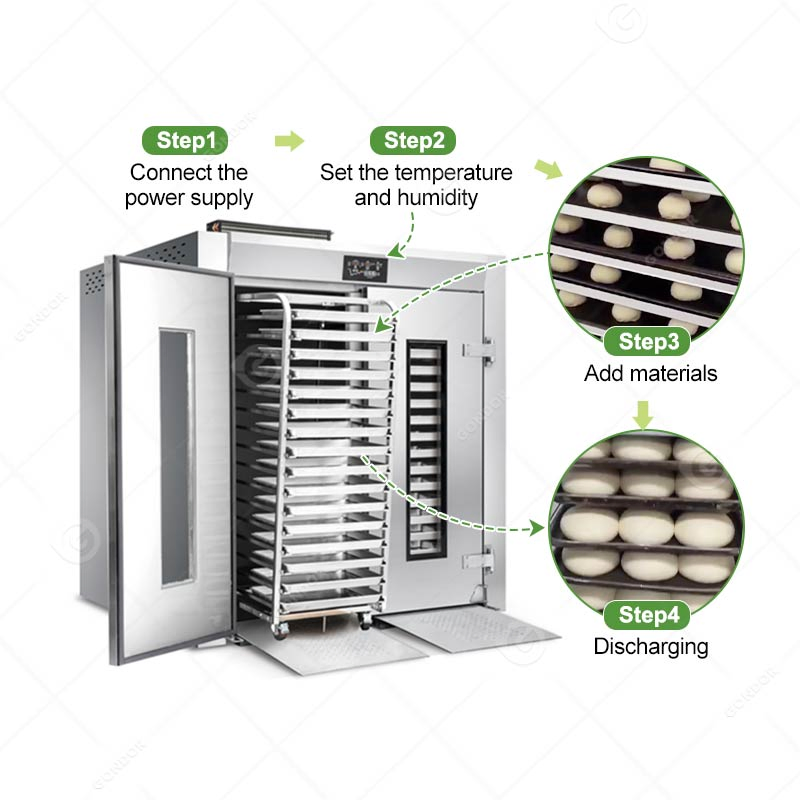

How to set appropriate temperature and humidity?
For standard Bread/Mantou: 38 ℃ and 80-85% humidity. For Danish Pastry: 30-32 ℃ and humidity below 75% to prevent butter from melting.
Do I need to preheat the machine in advance?
Yes, it is recommended to preheat the empty box for 10-15 minutes until the temperature and humidity have stabilized before putting in the dough.

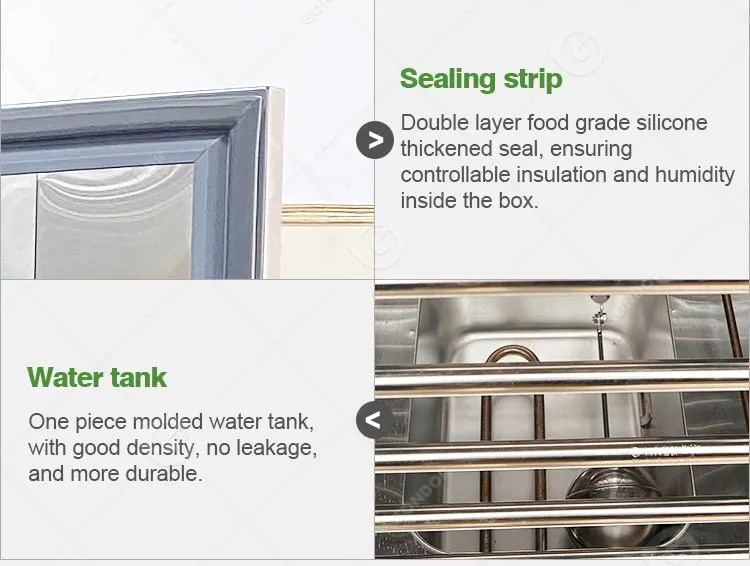

Does the water tank need to be refilled daily?
It is recommended to check daily and use pure water to reduce scale buildup. Emptying the tank after use helps maintain hygiene and longevity.
Is the machine compatible with different tray sizes?
The standard tray size is 400*600mm. The interior frame is designed to support high productivity with multiple tray configurations ranging from 5 to 128 trays depending on the model.
