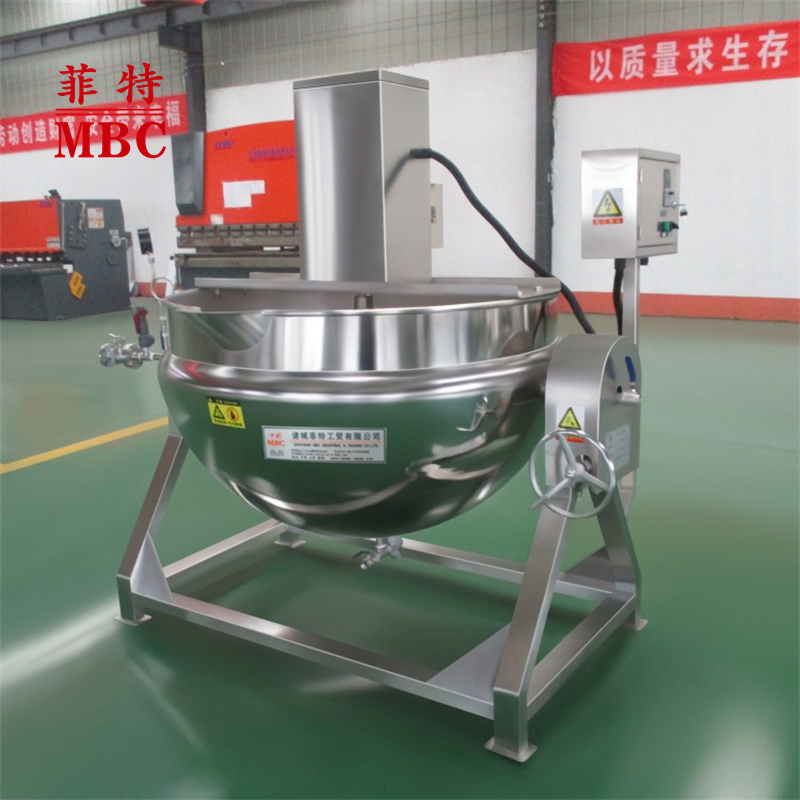

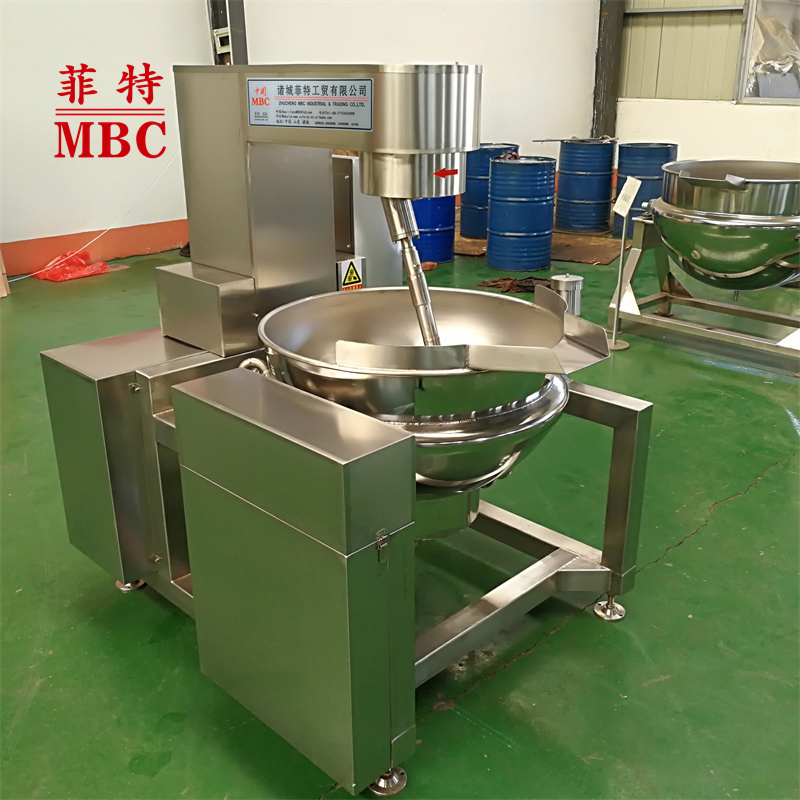

Steam electricity gas heating Inclinable Mixing Type Jacketed Pressure Cooker

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Usage
Sauce/Tomato sauce
Power Source
Electric / Steam / Gas / Electromagnetic
Type
Food cooking mixing machine
Material
304 / 316L Stainless Steel
Volume
100L/200L/300L/400L/500L/600L/800L
Features
Tilting, Automatic Temp Control, Mixing
🚀 Product Introduction

Industrial Jacketed Cooking Kettle: Ideal for processing Syrup, Jams, Tomato Paste, Chili Sauce, and Candy. This high-efficiency equipment offers a large heating area, uniform heat distribution, and precise temperature control.

This jacketed pressure cooker is widely used in cakes, drinks, juice, jam, dairy products, and canned food processing. It is also an essential tool for large hotels, restaurants, and canteens for stewing, boiling, and steaming. Its compact structure and easy installation make it a preferred choice for improving product quality and shortening working hours.

Jacketed Pressure Cooker Overview
⚙️ Product Parameters
Model 100L 200L 300L 400L 500L 600L
Heating Source Heat transfer oils / Steam / Gas
Electric Power 18KW 24KW 27KW 36KW 48KW 48KW
Motor Power 1.5KW 1.5KW 1.5KW 1.5KW 2.2KW 2.2KW
Material SUS304 Stainless Steel
Weight (Approx) 140kg 165kg 185kg 205kg 240kg 320kg
📷 Detailed Photos

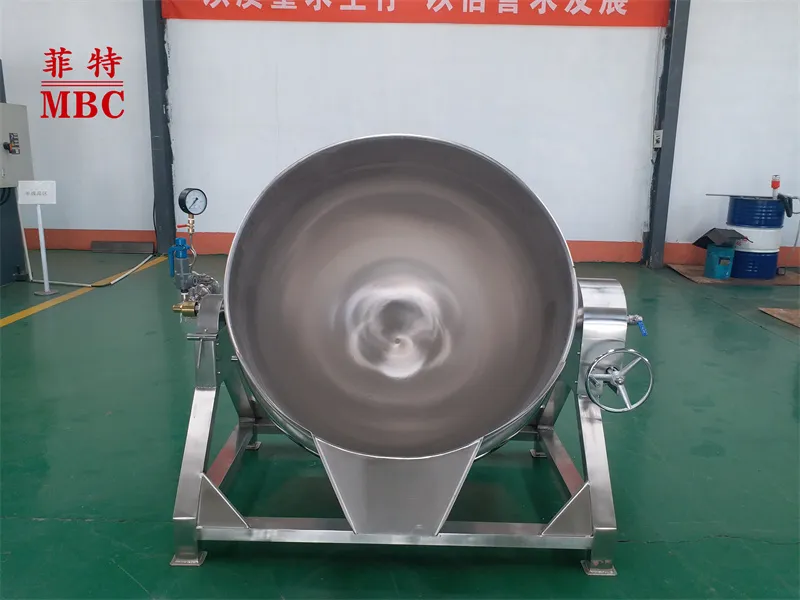

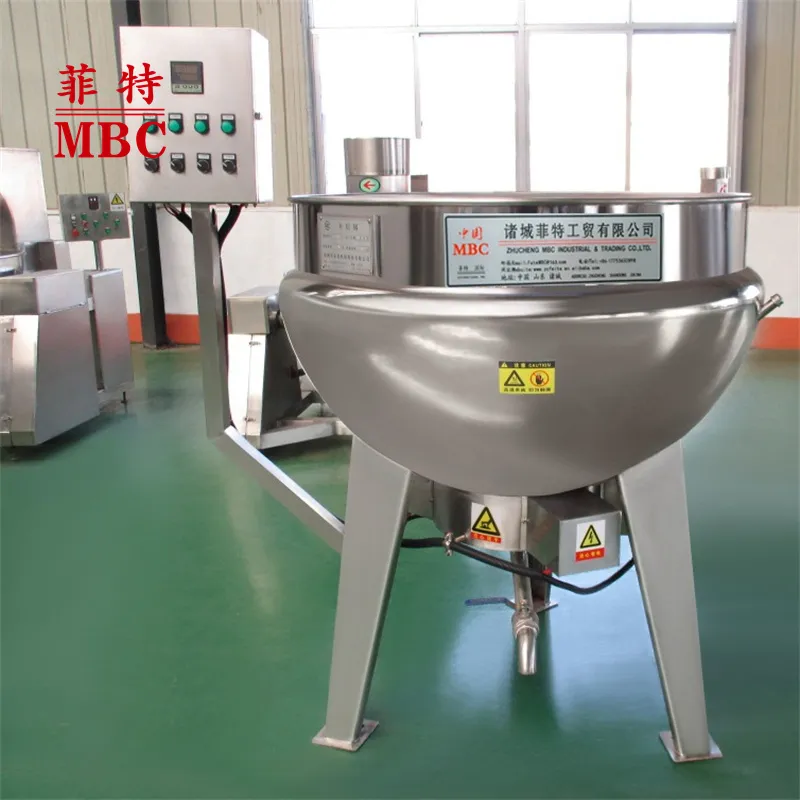

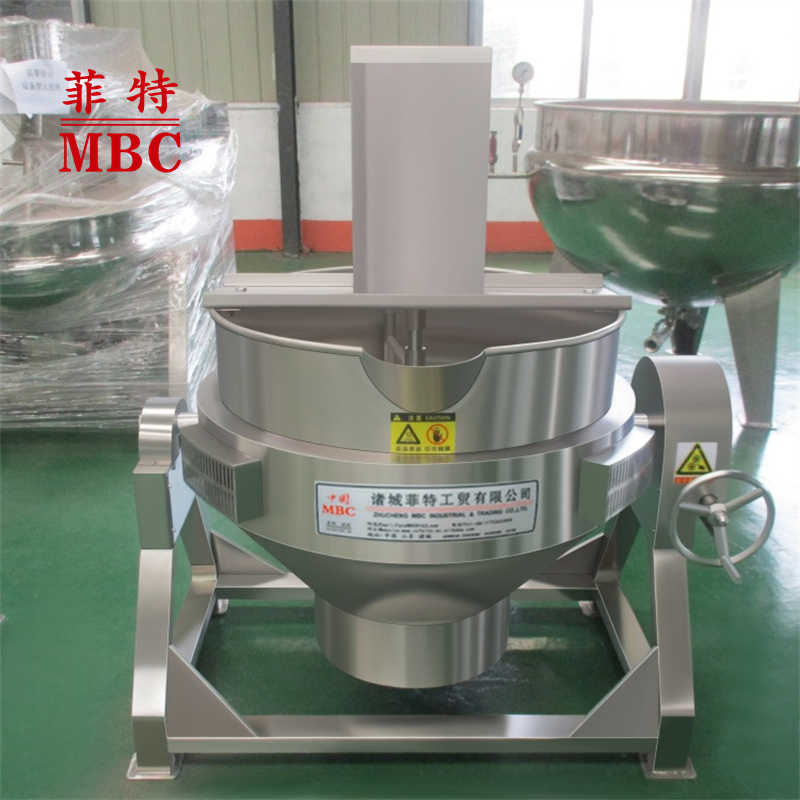

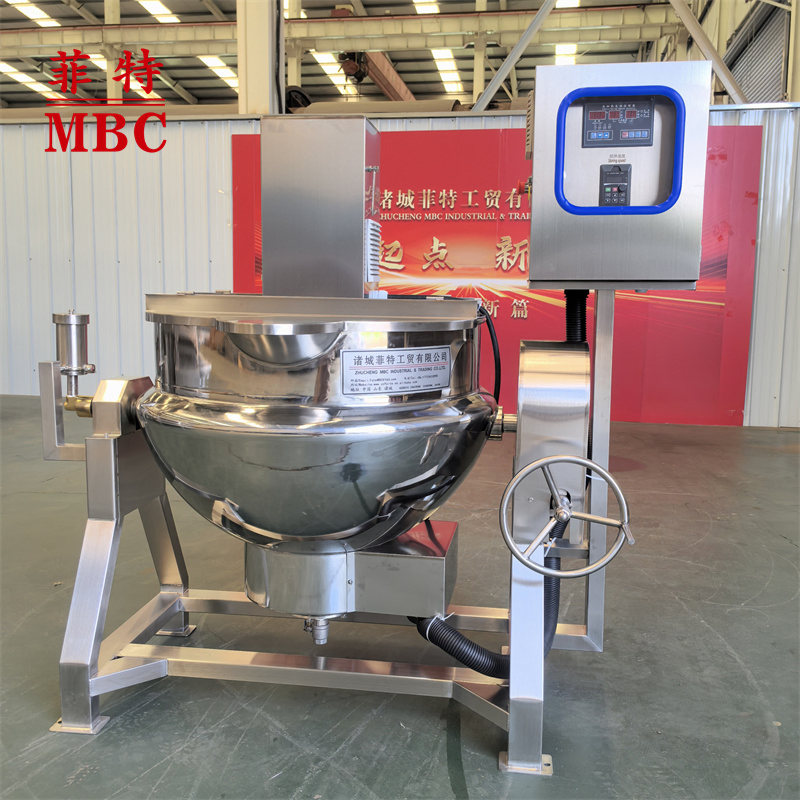

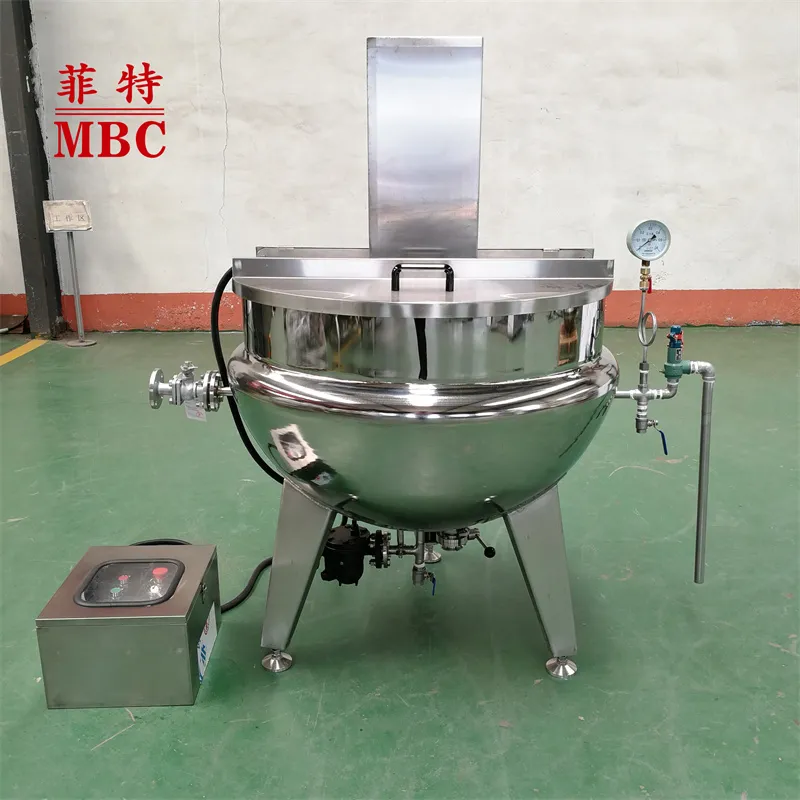

Steam Heating Vertical Type Vertical Jacketed Pan Tilting Jacketed Kettle

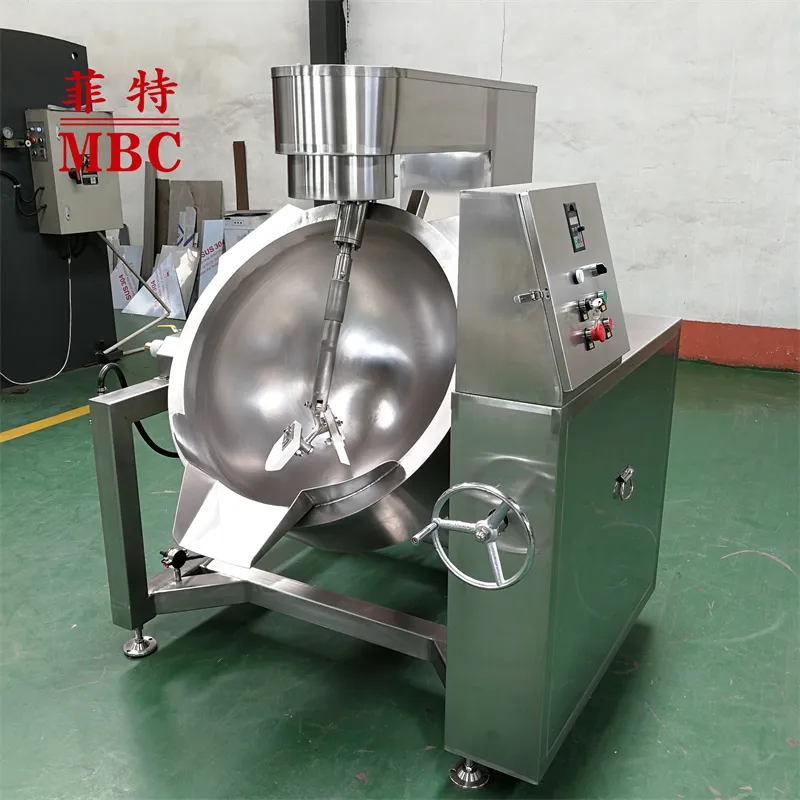

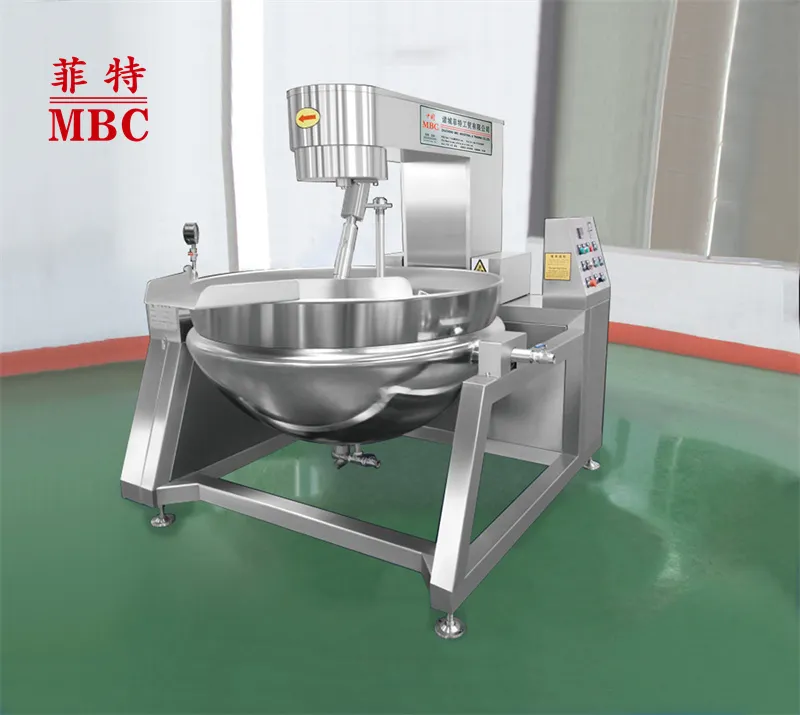

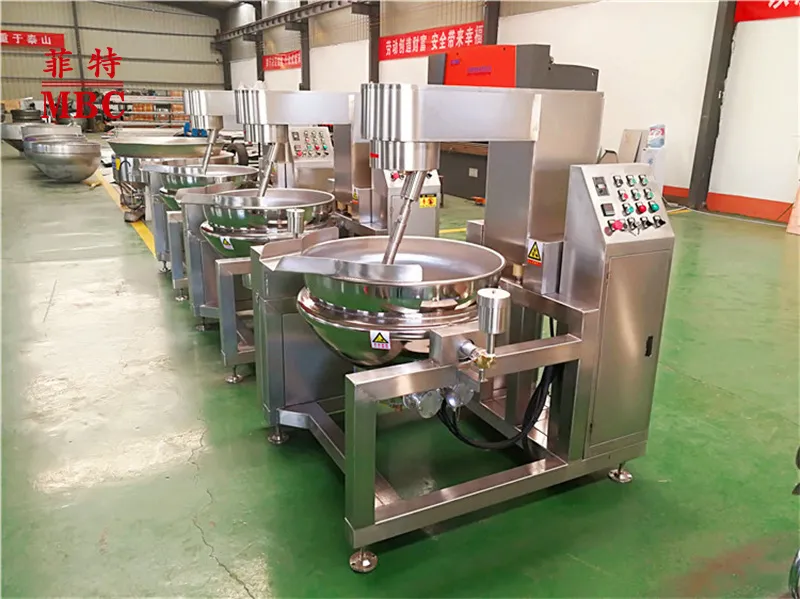

Inclined Discharge Wok Planetary Jacketed Kettle Electromagnetic Heating
🛠️ Operation Instructions
  • Check all fastening bolts and add grease to lubricating parts before power on.
  • Observe motor rotation direction (must follow the arrow).
  • Before feeding, clean the pot with a small amount of water.
  • Ensure the exhaust equipment remains open during heating to prevent jacket pressure build-up.
  • Clean the equipment after every use to maintain hygiene.
  • Replace heat conduction oil every 3 months for optimal heat transfer.

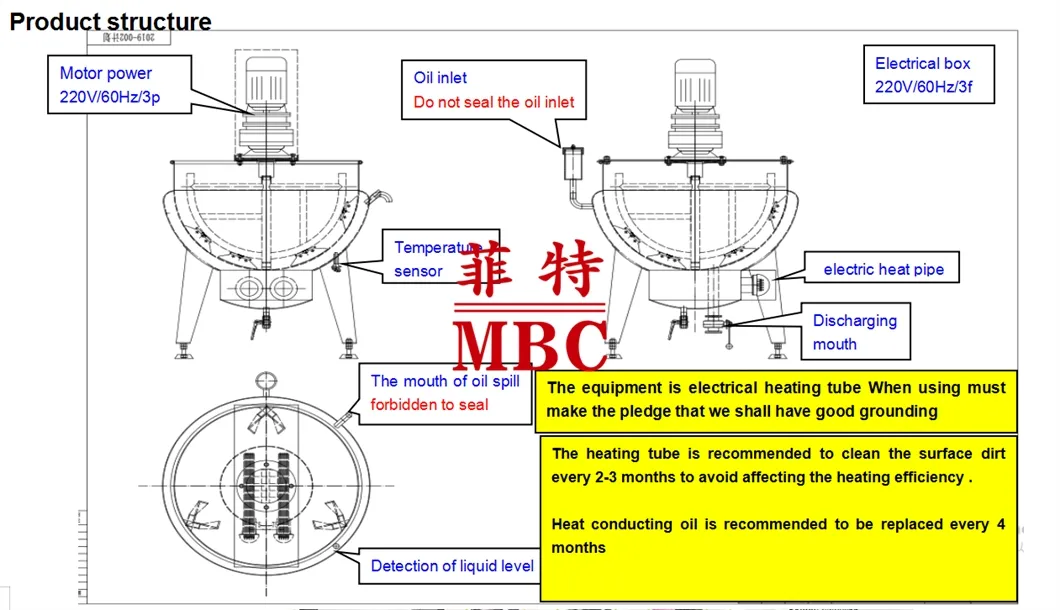

Operation Process
📦 Packaging & Shipping

Our delivery process includes comprehensive container arrangement to maximize space utilization and minimize costs. Every machine undergoes a professional technical inspection before packing.

Packaging Step 1 Packaging Step 2

We use standard export wooden cases or plastic film wrapping for full containers. Critical fixing tools are used inside containers to prevent damage during sea and land transit.

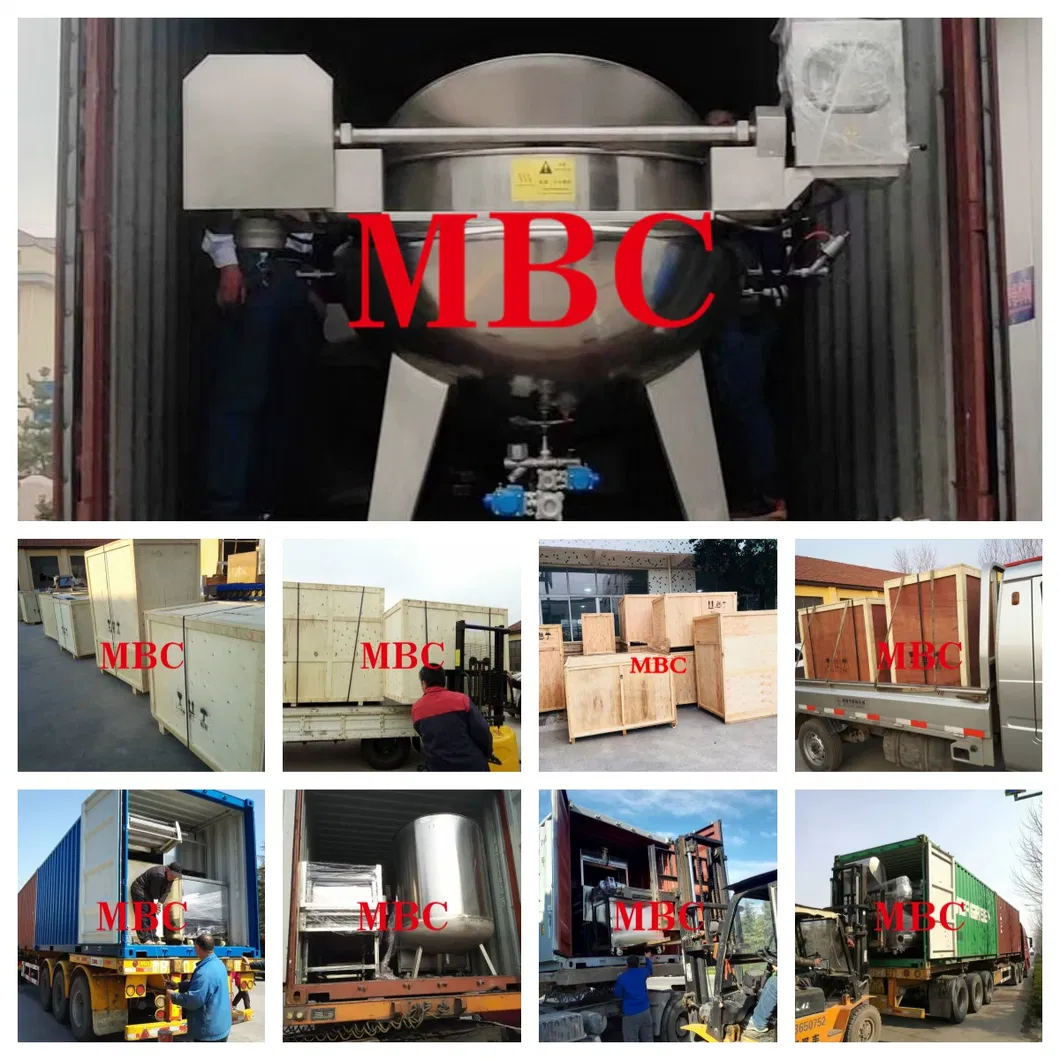

Container Loading
Frequently Asked Questions
1. What heating sources are available for the jacketed kettle?
We provide four heating options: steam, electricity, gas, and electromagnetic heating. You can choose the most suitable one based on your factory's energy resources.
2. Can the capacity of the cooking kettle be customized?
Yes, we offer standard volumes from 100L to 800L, and we can also provide customized sizes based on your specific processing requirements and output needs.
3. What materials are used in the construction?
All our food processing machines are made from high-quality SUS304 or SUS316L stainless steel to ensure food safety, durability, and corrosion resistance.
4. Does the machine include an automatic temperature control system?
Yes, the equipment is equipped with a temperature controller that allows you to monitor and control the heating process automatically.
5. What kind of after-sales service do you provide?
We offer a one-year complete warranty, life-time maintenance service, and provide consultation and project planning services from pre-sales to after-sales.
6. How do you ensure the safety of the machine during shipping?
We use professional container fixing tools and high-standard packaging (wooden cases or reinforced plastic wrapping) to prevent any movement or damage during land and sea transportation.
