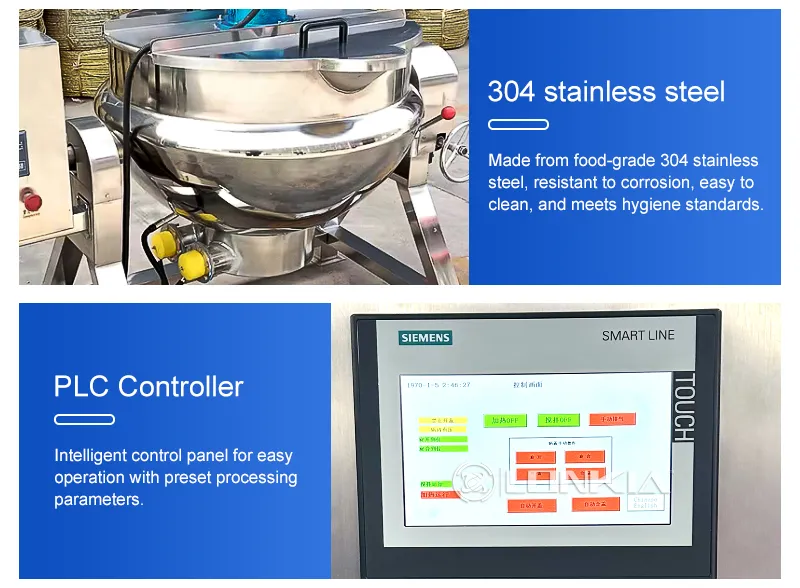

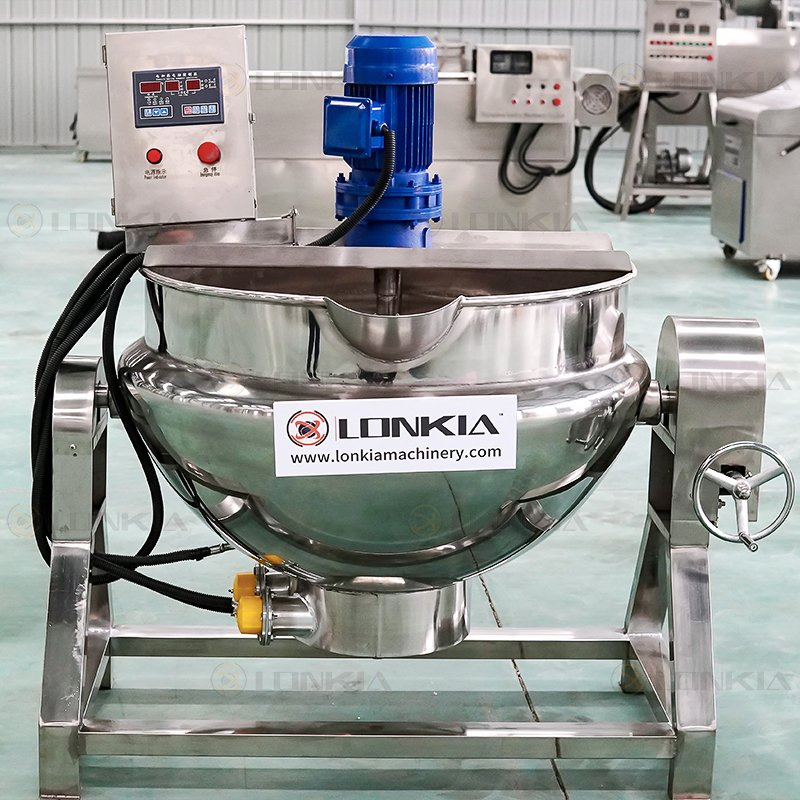

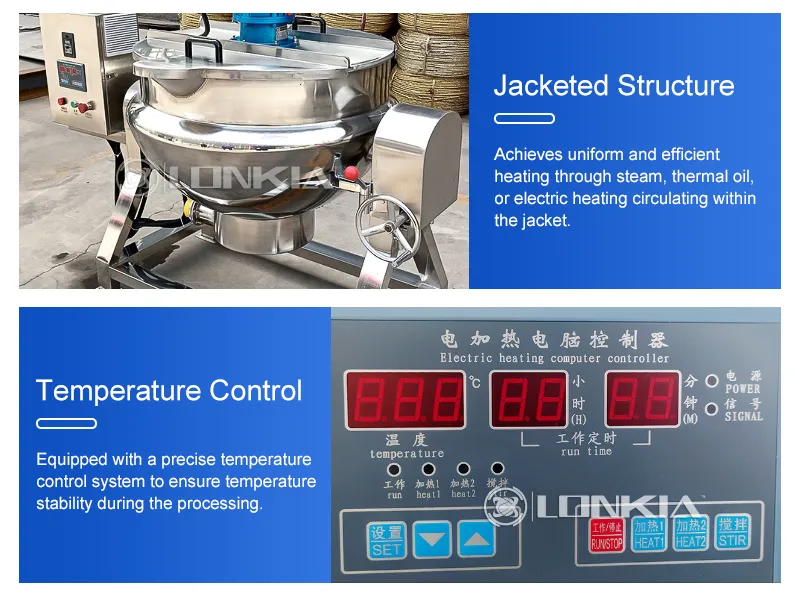

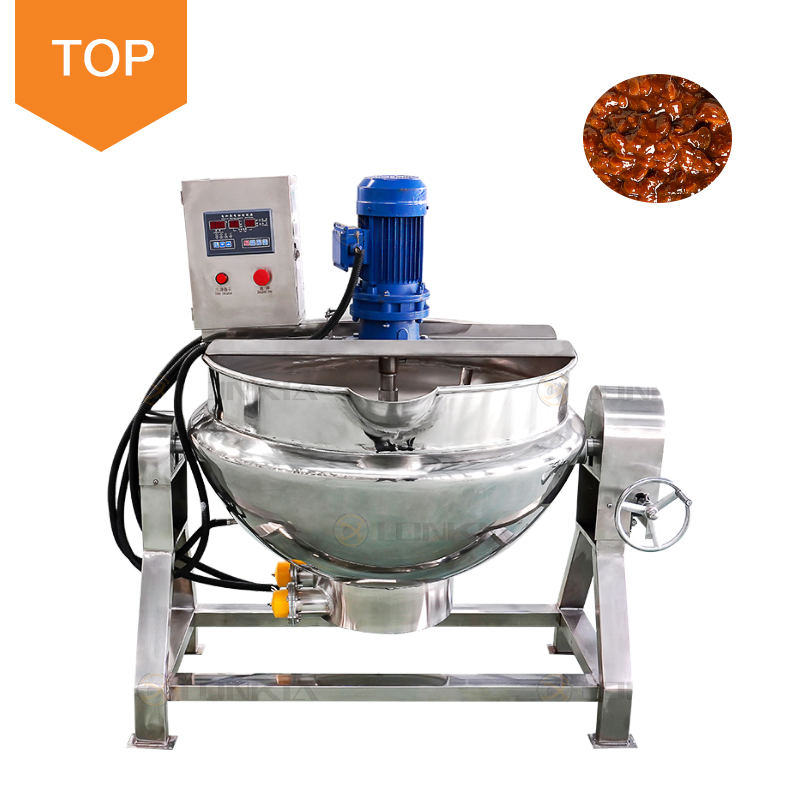

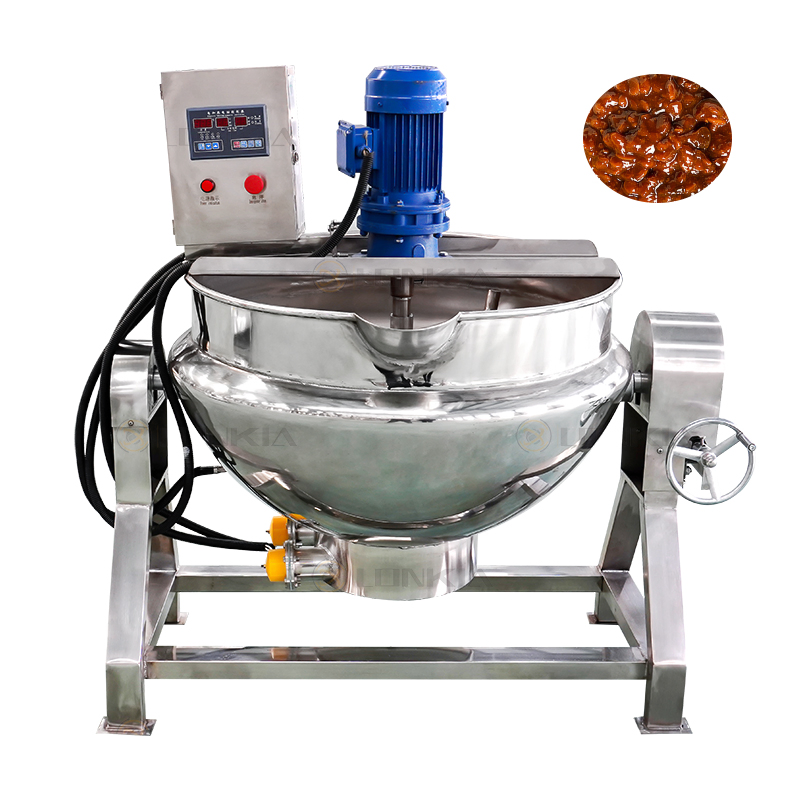

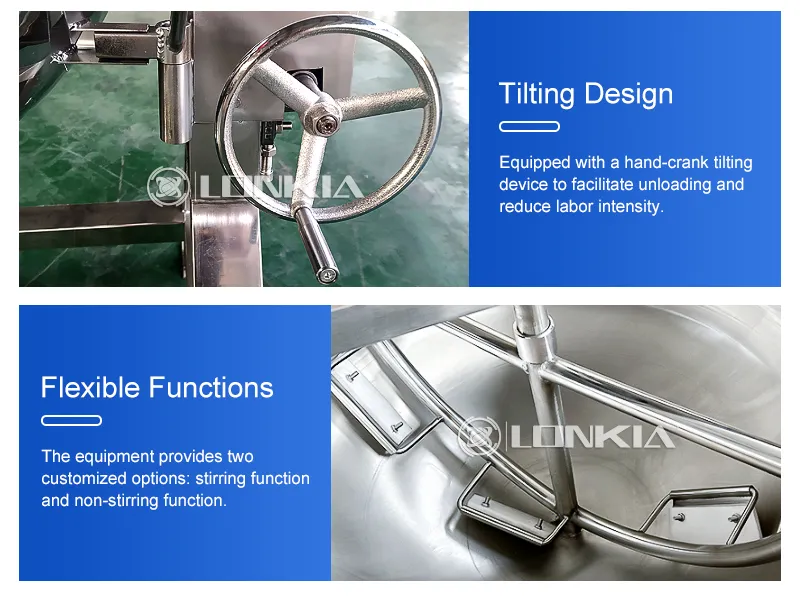

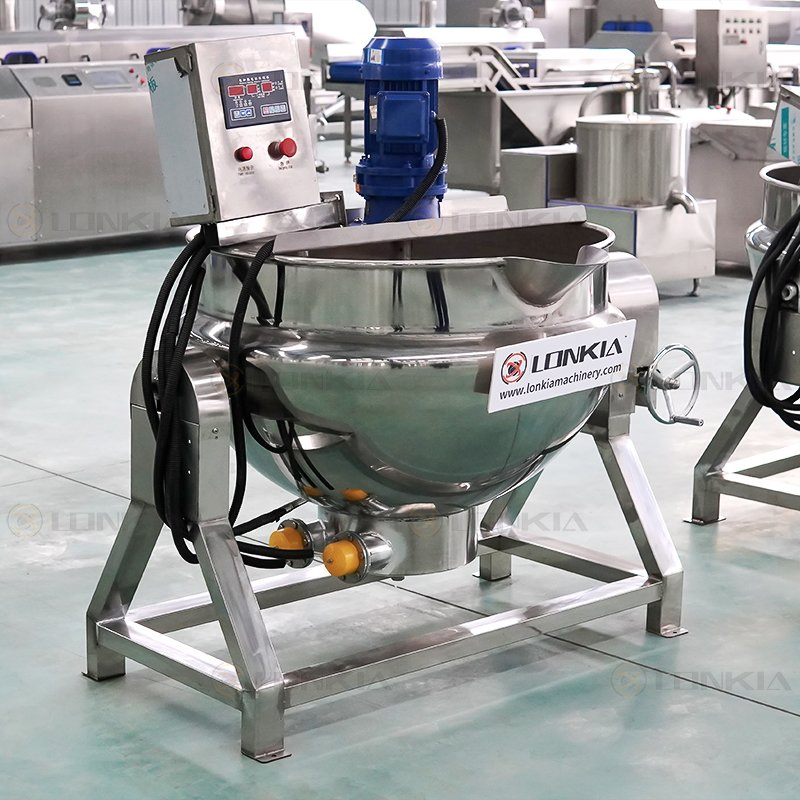

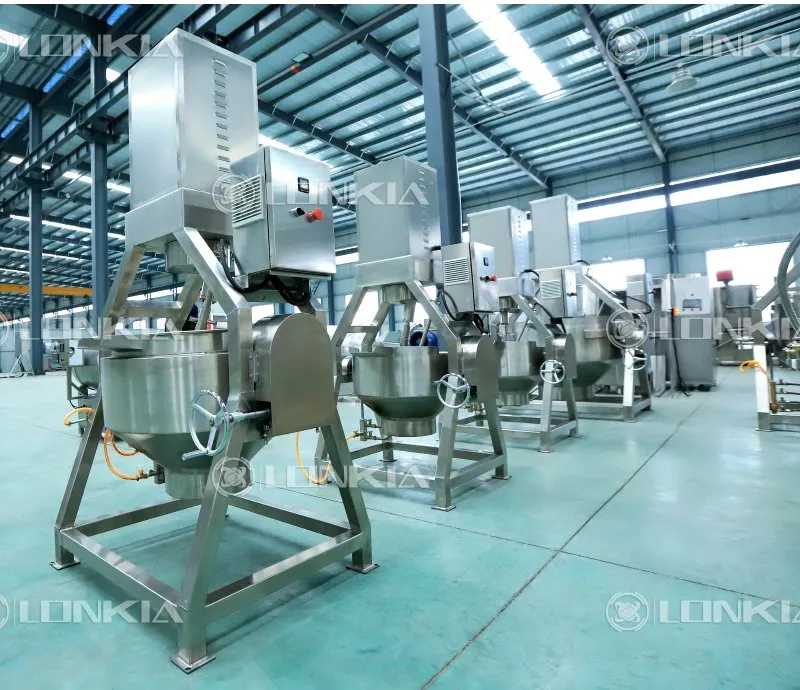

Gas jacketed kettle consists of a kettle, bracket, worm wheel, and worm. The kettle can revolve up to 180°. This equipment is designed for open concentration, primarily for decocting and concentrating liquids in the food, chemical, and light industries. The material contact area is made of SUS304 stainless steel, providing excellent corrosion resistance and durability in compliance with GMP requirements. Blenders can be added based on specific needs.
Available Configurations:
| Model | LK-50 | LK-100 | LK-200 | LK-300 | LK-400 | LK-500 | LK-600 |
|---|---|---|---|---|---|---|---|
| Power Supply | 3 phase 380V/220V 50/60HZ | ||||||
| Capacity (L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
| Diameter (mm) | 550 | 700 | 800 | 900 | 1000 | 1150 | 1200 |
| Work Temp. | 0-160ºC | ||||||
| Mixer Motor | 36rpm Constant / 40-200rpm Adjustable | ||||||
| Weight (Kg) | 90 | 105 | 135 | 155 | 190 | 255 | 265 |
* We can customize the equipment according to specific customer requirements.
The jacket kettle is widely applied in food processing for viscous syrup, jam, paste, and confectionery. It is also ideal for boiling soup, water, cooking food, stewing, and making porridge. It is considered the premier choice for heating and mixing thick products to improve quality and shorten production time.
